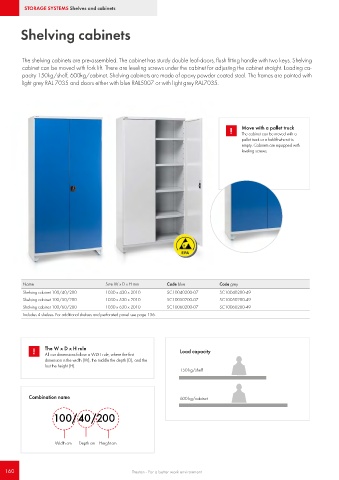

Page 160 - Treston main catalogue 2021

STORAGE SYSTEMS Shelves and cabinets

Shelving cabinets

The shelving cabinets are pre-assembled. The cabinet has sturdy double leaf-doors, flush fitting handle with two keys. Shelving
cabinet can be moved with fork lift. There are leveling screws under the cabinet for adjusting the cabinet straight. Loading ca-
pacity 150kg/shelf, 600kg/cabinet. Shelving cabinets are made of epoxy powder coated steel. The frames are painted with
light grey RAL 7035 and doors either with blue RAL5007 or with light grey RAL7035.

! Move with a pallet truck
The cabinet can be moved with a
pallet truck or a forklift when it is
empty. Cabinets are equipped with
leveling screws.

Name Size W x D x H mm Code blue Code grey
Shelving cabinet 100/40/200 1030 x 430 x 2010 SC10040200-07 SC10040200-49
Shelving cabinet 100/50/200 1030 x 530 x 2010 SC10050200-07 SC10050200-49
Shelving cabinet 100/60/200 1030 x 630 x 2010 SC10060200-07 SC10060200-49
Includes 4 shelves. For additional shelves and perforated panel see page 156.

! The W x D x H rule Load capacity
All our dimensions follow a WDH rule, where the first
dimension is the width (W), the middle the depth (D), and the
last the height (H).
150 kg/shelf

Combination name 600 kg/cabinet

100/40/200

Width cm Depth cm Height cm

160 Treston - For a better work environment
