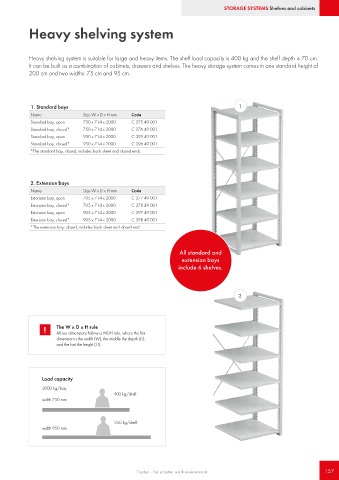

Page 157 - Treston main catalogue 2021

STORAGE SYSTEMS Shelves and cabinets

Heavy shelving system

Heavy shelving system is suitable for large and heavy items. The shelf load capacity is 400 kg and the shelf depth is 70 cm.
It can be built as a combination of cabinets, drawers and shelves. The heavy storage system comes in one standard height of
200 cm and two widths: 75 cm and 95 cm.

1. Standard bays 1
Name Size W x D x H mm Code
Standard bay, open 750 x 714 x 2000 C 375 49 001
Standard bay, closed* 750 x 714 x 2000 C 376 49 001
Standard bay, open 950 x 714 x 2000 C 395 49 001
Standard bay, closed* 950 x 714 x 2000 C 396 49 001
*The standard bay, closed, includes back sheet and closed ends.

2. Extension bays
Name Size W x D x H mm Code
Extension bay, open 705 x 714 x 2000 C 377 49 001
Extension bay, closed* 705 x 714 x 2000 C 378 49 001
Extension bay, open 905 x 714 x 2000 C 397 49 001
Extension bay, closed* 905 x 714 x 2000 C 398 49 001
*The extension bay, closed, includes back sheet and closed end.

All standard and
extension bays
include 6 shelves.

2

! The W x D x H rule
All our dimensions follow a WDH rule, where the first
dimension is the width (W), the middle the depth (D),
and the last the height (H).

Load capacity
2000 kg/bay
400 kg/shelf
width 750 mm

350 kg/shelf
width 950 mm
