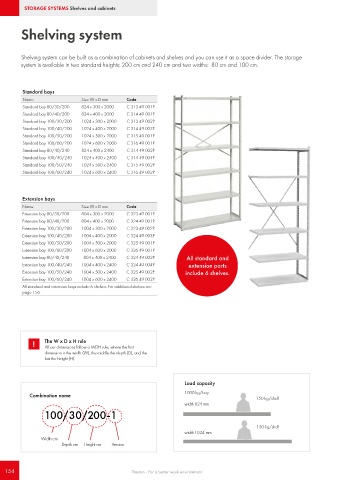

Page 154 - Treston main catalogue 2021

STORAGE SYSTEMS Shelves and cabinets

Shelving system

Shelving system can be built as a combination of cabinets and shelves and you can use it as a space divider. The storage
system is available in two standard heights: 200 cm and 240 cm and two widths: 80 cm and 100 cm.

Standard bays
Name Size W x D mm Code
Standard bay 80/30/200 824 x 300 x 2000 C 313 49 001P
Standard bay 80/40/200 824 x 400 x 2000 C 314 49 001P
Standard bay 100/30/200 1024 x 300 x 2000 C 313 49 002P
Standard bay 100/40/200 1024 x 400 x 2000 C 314 49 003P
Standard bay 100/50/200 1024 x 500 x 2000 C 315 49 001P
Standard bay 100/60/200 1024 x 600 x 2000 C 316 49 001P
Standard bay 80/40/240 824 x 400 x 2400 C 314 49 002P
Standard bay 100/40/240 1024 x 400 x 2400 C 314 49 004P
Standard bay 100/50/240 1024 x 500 x 2400 C 315 49 002P
Standard bay 100/60/240 1024 x 600 x 2400 C 316 49 002P

Extension bays
Name Size W x D mm Code
Extension bay 80/30/200 804 x 300 x 2000 C 323 49 001P
Extension bay 80/40/200 804 x 400 x 2000 C 324 49 001P
Extension bay 100/30/200 1004 x 300 x 2000 C 323 49 002P
Extension bay 100/40/200 1004 x 400 x 2000 C 324 49 003P
Extension bay 100/50/200 1004 x 500 x 2000 C 325 49 001P
Extension bay 100/60/200 1004 x 600 x 2000 C 326 49 001P
Extension bay 80/40/240 804 x 400 x 2400 C 324 49 002P All standard and
Extension bay 100/40/240 1004 x 400 x 2400 C 324 49 004P extension parts
Extension bay 100/50/240 1004 x 500 x 2400 C 325 49 002P include 6 shelves.
Extension bay 100/60/240 1004 x 600 x 2400 C 326 49 002P
All standard and extension bays include 6 shelves. For additional shelves see
page 156.

! The W x D x H rule
All our dimensions follow a WDH rule, where the first
dimension is the width (W), the middle the depth (D), and the
last the height (H).

Load capacity

1000 kg/bay
Combination name
150 kg/shelf
width 824 mm
100/30/200-1

150 kg/shelf
width 1024 mm
Width cm
Depth cm Height cm Version
