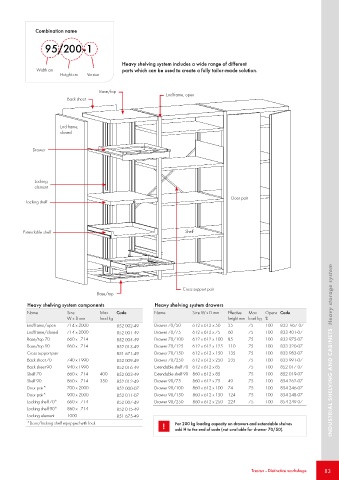

Page 83 - Treston

Combination name

95/200-1

Heavy shelving system includes a wide range of different
Width cm parts which can be used to create a fully tailor-made solution.
Height cm Version

Base/top
End frame, open
Back sheet

End frame,
closed

Drawer

Locking
element

Door pair
Locking shelf

Extendable shelf Shelf

Cross support pair
Base/top
Heavy shelving system components Heavy shelving system drawers
Name Size Max Code Name Size W x D mm Effective Max Opens Code
W x D mm load kg height mm load kg %
End frame/open 714 x 2000 852 002-49 Drawer 70/50 612 x 612 x 50 35 75 100 833 967-07
End frame/closed 714 x 2000 852 001-49 Drawer 70/75 612 x 612 x 75 60 75 100 833 401-07
Base/top 70 660 x 714 852 004-49 Drawer 70/100 612 x 612 x 100 85 75 100 833 975-07
Base/top 90 860 x 714 852 013-49 Drawer 70/125 612 x 612 x 125 110 75 100 833 320-07
Cross support pair 851 671-49 Drawer 70/150 612 x 612 x 150 135 75 100 833 983-07 INDUSTRIAL SHELVING AND CABINETS Heavy storage system
Back sheet 70 740 x 1990 852 009-49 Drawer 70/250 612 x 612 x 250 235 75 100 833 991-07
Back sheet 90 940 x 1990 852 016-49 Extendable shelf 70 612 x 612 x 85 75 100 852 017-07
Shelf 70 660 x 714 400 852 003-49 Extendable shelf 90 860 x 612 x 85 75 100 852 019-07
Shelf 90 860 x 714 350 852 012-49 Drawer 90/75 860 x 612 x 75 49 75 100 854 262-07
Door pair* 700 x 2000 852 000-07 Drawer 90/100 860 x 612 x 100 74 75 100 854 246-07
Door pair* 900 x 2000 852 011-07 Drawer 90/150 860 x 612 x 150 124 75 100 854 248-07
Locking shelf 70* 660 x 714 852 007-49 Drawer 90/250 860 x 612 x 250 224 75 100 854 249-07
Locking shelf 90* 860 x 714 852 015-49
Locking element 1000 851 675-49
*Door/locking shelf equipped with lock For 200 kg loading capacity on drawers and extendable shelves
! add H to the end of code (not available for drawer 70/50).

Treston - Distinctive workshops 83
