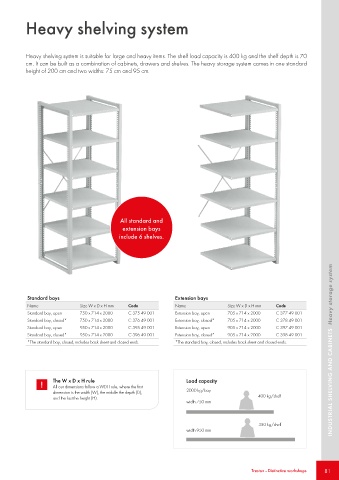

Heavy shelving system

Heavy shelving system is suitable for large and heavy items. The shelf load capacity is 400 kg and the shelf depth is 70
cm. It can be built as a combination of cabinets, drawers and shelves. The heavy storage system comes in one standard
height of 200 cm and two widths: 75 cm and 95 cm.

All standard and
extension bays
include 6 shelves.

Standard bays Extension bays
Name Size W x D x H mm Code Name Size W x D x H mm Code
Standard bay, open 750 x 714 x 2000 C 375 49 001 Extension bay, open 705 x 714 x 2000 C 377 49 001
Standard bay, closed* 750 x 714 x 2000 C 376 49 001 Extension bay, closed* 705 x 714 x 2000 C 378 49 001
Standard bay, open 950 x 714 x 2000 C 395 49 001 Extension bay, open 905 x 714 x 2000 C 397 49 001
Standard bay, closed* 950 x 714 x 2000 C 396 49 001 Extension bay, closed* 905 x 714 x 2000 C 398 49 001
*The standard bay, closed, includes back sheet and closed ends. *The standard bay, closed, includes back sheet and closed ends. INDUSTRIAL SHELVING AND CABINETS Heavy storage system

! The W x D x H rule Load capacity
All our dimensions follow a WDH rule, where the first
dimension is the width (W), the middle the depth (D), 2000 kg/bay
and the last the height (H). 400 kg/shelf
width 750 mm

350 kg/shelf
width 950 mm
