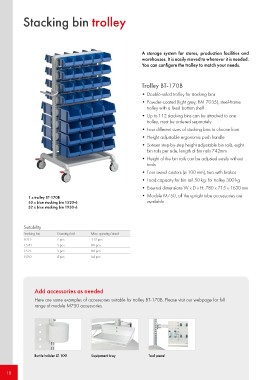

Stacking bin trolley

1 x trolley BT-170B A storage system for stores, production facilities and
40 x blue stacking bin 1520-6 warehouses. It is easily moved to wherever it is needed.
32 x blue stacking bin 1930-6 You can configure the trolley to match your needs.

Trolley BT-170B

• Double-sided trolley for stacking bins
• Powder-coated (light grey, RAL 7035), steel-frame

trolley with a fixed bottom shelf
• Up to 112 stacking bins can be attached to one

trolley, must be ordered separately
• Four different sizes of stacking bins to choose from
• Height adjustable ergonomic push handle
• Sixteen step-by-step height adjustable bin rails, eight

bin rails per side, length of bin rails 742mm
• Height of the bin rails can be adjusted easily without

tools
• Four swivel castors (ø 100 mm), two with brakes
• Load capacity for bin rail 50 kg, for trolley 300 kg
• External dimensions W x D x H: 780 x 715 x 1630 mm
• Module M750, all the upright tube accessories are

available

Suitability Quantity/rail Max. quantity/stand
7 pcs 112 pcs
Stacking bin 5 pcs 80 pcs
1015 5 pcs 80 pcs
1520 4 pcs 64 pcs
1525
1930

Add accessories as needed

Here are some examples of accessories suitable for trolley BT-170B. Please visit our webpage for full
range of module M750 accessories.

Bottle holder Ø 100 Equipment tray Tool panel
