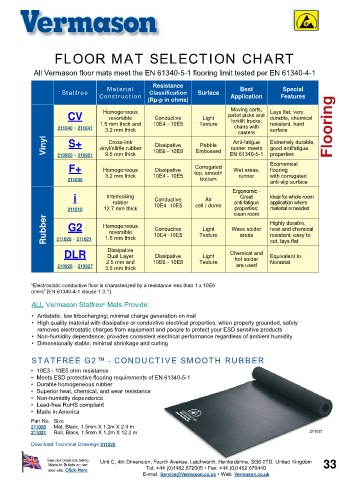

FLOOR MAT SELECTION CHART


             All Vermason floor mats meet the EN 61340-5-1 flooring limit tested per EN 61340-4-1

                                       Material        Resistance                    Best           Special
                       Statfree                      Classification   Surface
                                    Construction                                  Application       Features
                                                     (Rp-p in ohms)
                                                                                  Moving carts,
                         CV          Homogeneous       Conductive       Light    pallet jacks and   Lays flat; very
                                       reversible
                                                                                                durable, chemical
                                    1.5 mm thick and   10E4 - 10E5     Texture    forklift trucks;   resistant, hard
                     211040 - 211041  3.2 mm thick                                 chairs with   surface              Flooring
                                                                                     casters
                 Vinyl  210950 - 210951  vinyl/nitrile rubber  10E6 - 10E8  Embossed  EN 61340-5-1  Extremely durable,
                         S+
                                                                                   Anti-fatigue
                                       Cross-link
                                                                       Pebble
                                                        Dissipative
                                                                                                good antifatigue
                                                                                  runner meets
                                                                                                properties
                                      9.5 mm thick
                         F+          Homogeneous        Dissipative   Corrugated   Wet areas,   Economical
                                                                                                flooring
                                      3.2 mm thick     10E4 - 10E5   top, smooth     runner     with corrugated
                         211030                                        bottom                   anti-slip surface
                                                                                   Ergonomic -
                           i           Interlocking    Conductive        Air       anti-fatigue  Ideal for whole room
                                                                                     Great
                                         rubber
                                                                                                application where
                         211010      12.7 mm thick     10E4 -10E5     cell / dome  properties;   material is needed
                                                                                   clean room
                 Rubber  211020 - 211021  Homogeneous  10E4 -10E5      Texture    Wave solder   Highly durable,
                         G2
                                                       Conductive
                                                                                                heat and chemical
                                                                        Light
                                       reversible
                                                                                     areas
                                                                                                resistant, easy to
                                      1.5 mm thick
                                                                                                cut, lays flat
                        DLR            Dissipative      Dissipative     Light     Chemical and   Equivalent to
                                       Dual Layer
                                      2.5 mm and       10E6 - 10E8     Texture     hot solder   Norastat
                     210926 - 210927  3.5 mm thick                                  are used
            “Electrostatic conductive floor is characterized by a resistance less than 1 x 10E6
            ohms” [EN 61340-4-1 clause 1.3.1]
            ALL Vermason Statfree  Mats Provide:
                                     ®
            •  Antistatic, low tribocharging; minimal charge generation on mat
            •  High quality material with dissipative or conductive electrical properties; when properly grounded, safely
              removes electrostatic charges from equipment and people to protect your ESD sensitive products
            •  Non-humidity dependence; provides consistent electrical performance regardless of ambient humidity
            •  Dimensionally stable; minimal shrinkage and curling


            STATFREE G2™ - CONDUCTIVE SMOOTH RUBBER
            •  10E3 - 10E5 ohm resistance
            •  Meets ESD protective flooring requirements of EN 61340-5-1
            •  Durable homogeneous rubber
            •  Superior heat, chemical, and wear resistance
            •  Non-humidity dependence
            •  Lead-free RoHS compliant
            •  Made in America

            Part No.  Size
            211020   Mat, Black, 1.5mm X 1.2m X 2.4 m
            211021   Roll, Black, 1.5mm X 1.2m X 12.2 m                                                       211021

            Download Technical Drawings 211020
