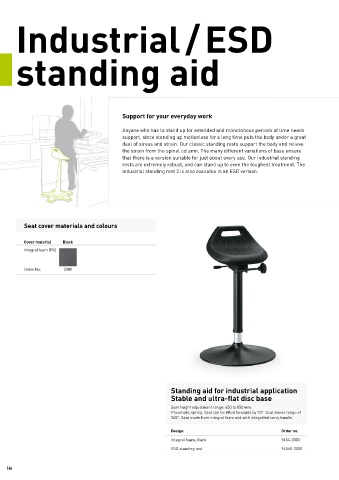

Page 144 - INTERSTUHL BIMOS

Industrial / ESD

standing aid Standing work

Support for your everyday work Functions (for precise details, see pages 16 – 17)

Anyone who has to stand up for extended and monotonous periods of time needs
support, since standing up motionless for a long time puts the body under a great
deal of stress and strain. Our classic standing rests support the body and relieve
the strain from the spinal column. The many different variations of base ensure
that there is a version suitable for just about every use. Our industrial standing
rests are extremely robust, and can stand up to even the toughest treatment. The
industrial standing rest 2 is also available in an ESD version.

Seat height adjustment Seat swivel range of 360° Seat tilt adjuster
(Mod. 9454, 9456) (Mod. 9452, 9454, 9456)

Seat cover materials and colours

Cover material Black
Integral foam (PU)

Order No. 2000

Standing aid for industrial application Standing aid for industrial application Standing aid for industrial application
Stable and ultra-fl at disc base Collapsible Fold-away leg

Seat height adjustment range: 650 to 850 mm. Seat height adjustment range: 650 to 850 mm. Seat height adjustment range: 640 to 840 mm.
Pneumatic spring. Seat can be tilted forwards by 10°. Seat swivel range of Ratchet mechanism. Seat can be tilted forwards by 10°. Seat made from Pneumatic spring. Seat can be tilted forwards by 10°. Seat swivel range of
360°. Seat made from integral foam and with integrated carry handle. integral foam and with integrated carry handle. 360°. Seat made from integral foam and with integrated carry handle.

Design Order no. Design Order no. Design Order no.
Integral foam, black 9454-2000 Integral foam, black 9452-2000 Integral foam, black 9456-2000
ESD standing rest 9454E-2000

144 145
