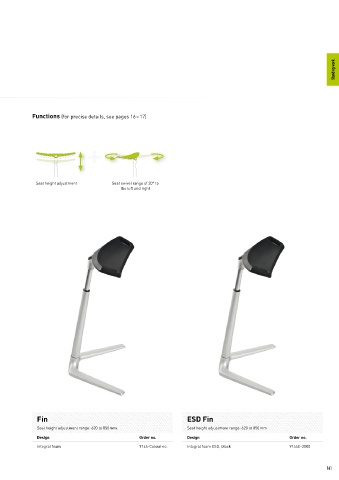

Page 141 - INTERSTUHL BIMOS

Fin / ESD Fin Standing work

Design and materials Functions (for precise details, see pages 16 – 17)

Fin is made of aluminium and has a seat made of Soft Touch PU foam. In the
standard version, the frame has a blasted aluminium surface. The base can also
be supplied in anthracite on request. In the standard version, there are four seat
colours available. In addition, there is also a conductive ESD version in black. The
ESD version of Fin has a discharge resistance of 10 Ω, so fulfilling the require-
6
ments of ESD standard EN 61340-5-1.

Seat height adjustment Seat swivel range of 20° to
the left and right

Options

Aluminium base
coated, anthracite

Finish and colours
for seat model 9144

Finish Black Blue Grey
Integral foam

Order no. 2000 2001 2002

Finish and colours
for seat model 9144E

Finish Black Fin ESD Fin
Integral foam Seat height adjustment range: 620 to 850 mm. Seat height adjustment range: 620 to 850 mm
ESD
Design Order no. Design Order no.
Order no. 2000 Integral foam 9144-Colour no. Integral foam ESD, black 9144E-2000

140 141
