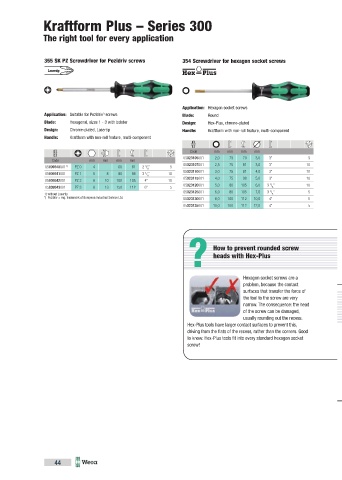

Kraftform Plus – Series 300

The right tool for every application

355 SK PZ Screwdriver for Pozidriv screws 354 Screwdriver for hexagon socket screws

Application: Hexagon socket screws
Application: Suitable for Pozidriv screws Blade: Round
*)
Blade: Hexagonal, sizes 1 - 3 with bolster Design: Hex-Plus, chrome-plated
Design: Chrome-plated, Lasertip Handle: Kraftform with non-roll feature, multi-component
Handle: Kraftform with non-roll feature, multi-component

Code mm mm mm mm
05023105001 2,0 75 70 3,0 3" 5
Code mm mm mm mm
05023107001 2,5 75 81 3,0 3" 10
05009340001 1) PZ 0 4 60 81 2 / " 5
3
8
1
05009341001 PZ 1 5 8 80 98 3 / " 10 05023110001 3,0 75 81 4,0 3" 10
8
05009342001 PZ 2 6 10 100 105 4" 10 05023115001 4,0 75 98 5,0 3" 10
1
05023120001 5,0 80 105 6,0 3 / " 10
05009343001 PZ 3 8 13 150 112 6" 5 8
05023125001 6,0 80 105 7,0 3 / " 5
1
1) without Lasertip 8
*) Pozidriv = reg. trademark of European Industrial Service Ltd. 05023130001 8,0 100 112 10,0 4" 5
05023135001 10,0 100 112 12,0 4" 5

? How to prevent rounded screw
heads with Hex-Plus

Hexagon socket screws are a
problem, because the contact
surfaces that transfer the force of
the tool to the screw are very
narrow. The consequence: the head
of the screw can be damaged,
usually rounding out the recess.
Hex-Plus tools have larger contact surfaces to prevent this,
driving from the fl ats of the recess, rather than the corners. Good
to know: Hex-Plus tools fi t into every standard hexagon socket
screw!
