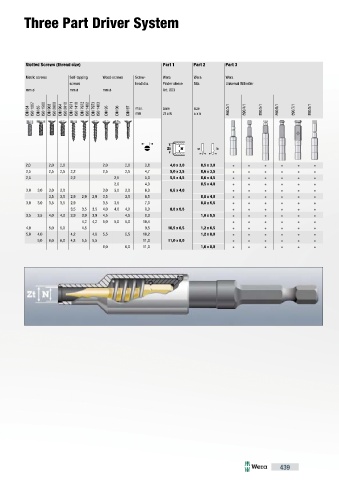

Three Part Driver System

Slotted Screws (thread size) Part 1 Part 2 Part 3

Metric screws Self-tapping Wood-screws Screw- Wera Wera Wera
screws head dia. Finder sleeve Bits Universal Bitholder
mm ø mm ø mm ø Art. 803

DIN 84 ISO 1207 DIN 85 ISO 1580 DIN 963 ISO 2009 DIN 964 ISO 2010 DIN 7971 ISO 1418 DIN 7972 ISO 1482 DIN 7973 ISO 1483 DIN 95 DIN 96 DIN 97 max. bore size 890/3/1 890/4/1 890/5/1 890/6/1 890/7/1 890/8/1
mm
Zt x N
a x b

2,0 2,0 2,0 2,0 2,0 3,8 4,0 x 3,0 0,5 x 3,0 ● ● ● ● ● ●
2,5 2,5 2,5 2,2 2,5 2,5 4,7 5,0 x 3,5 0,6 x 3,5 ● ● ● ● ● ●
2,5 2,2 2,5 5,0 5,5 x 4,5 0,6 x 4,5 ● ● ● ● ● ●
2,0 4,0 0,5 x 4,0 ● ● ● ● ● ●
3,0 3,0 3,0 3,0 3,0 3,0 3,0 6,0 6,5 x 4,0 ● ● ● ● ● ●
3,5 3,5 2,9 2,9 2,9 3,5 3,5 6,5 0,8 x 4,0 ● ● ● ● ● ●
3,0 3,0 3,5 3,5 2,9 3,5 3,5 7,0 0,8 x 5,5 ● ● ● ● ● ●
3,5 3,5 3,5 4,0 4,0 4,0 8,0 8,5 x 5,5 ● ● ● ● ● ●
3,5 3,5 4,0 4,0 3,9 3,9 3,9 4,5 4,5 8,3 1,0 x 5,5 ● ● ● ● ● ●
4,2 4,2 5,0 5,0 5,0 10,4 ● ● ● ● ● ●
4,0 5,0 5,0 4,8 9,5 10,5 x 6,5 1,2 x 6,5 ● ● ● ● ● ●
5,0 4,0 4,2 4,8 5,5 5,5 10,2 1,2 x 8,0 ● ● ● ● ● ●
5,0 6,0 6,0 4,8 5,5 5,5 11,0 11,0 x 8,0 ● ● ● ● ● ●
6,0 6,0 11,0 1,6 x 8,0 ● ● ● ● ● ●

439
