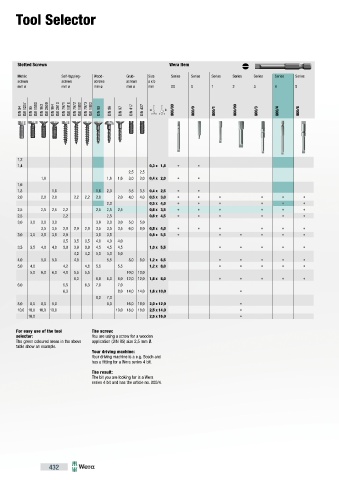

Tool Selector

Slotted Screws Wera Item
Metric Self-tapping- Wood- Grub- Size Series Series Series Series Series Series Series
screws screws screws screws a x b
mm ø mm ø mm ø mm ø mm 00 0 1 2 3 4 8

DIN 84 ISO 1207 DIN 85 ISO 1580 DIN 963 ISO 2009 DIN 964 ISO 2010 DIN 7971 ISO 1418 DIN 7972 ISO 1482 DIN 7973 ISO 1483 DIN 95 DIN 96 DIN 97 DIN 417 DIN 427 800/00 800/0 800/1 800/00 800/3 800/4 800/8

1,2
1,4 0,3 x 1,8 ● ●
2,5 2,5
1,6 1,6 1,6 3,0 3,0 0,4 x 2,0 ● ●
1,6
1,8 1,6 1,6 2,0 3,5 3,5 0,4 x 2,5 ● ●
2,0 2,0 2,0 2,2 2,2 2,0 2,0 4,0 4,0 0,5 x 3,0 ● ● ● ● ● ●
2,0 0,5 x 4,0 ● ● ● ● ● ●
2,5 2,5 2,5 2,2 2,5 2,5 2,5 0,6 x 3,5 ● ● ● ● ● ●
2,5 2,2 2,5 0,6 x 4,5 ● ● ● ● ● ●
3,0 3,0 3,0 3,0 3,0 3,0 3,0 5,0 5,0
3,5 3,5 2,9 2,9 2,9 3,5 3,5 3,5 6,0 6,0 0,8 x 4,0 ● ● ● ● ● ●
3,0 3,0 3,5 3,5 2,9 3,5 3,5 0,8 x 5,5 ● ● ● ● ● ●
3,5 3,5 3,5 4,0 4,0 4,0
3,5 3,5 4,0 4,0 3,9 3,9 3,9 4,5 4,5 4,5 1,0 x 5,5 ● ● ● ● ●
4,2 4,2 5,0 5,0 5,0
4,0 5,0 5,0 4,8 5,5 8,0 8,0 1,2 x 6,5 ● ● ● ● ●
5,0 4,0 4,2 4,8 5,5 5,5 1,2 x 8,0 ● ● ● ● ●
5,0 6,0 6,0 4,8 5,5 5,5 10,0 10,0
6,3 6,0 6,0 6,0 12,0 12,0 1,6 x 8,0 ● ● ● ● ●
6,0 5,5 6,3 7,0 7,0
6,3 8,0 14,0 14,0 1,6 x 10,0 ●
8,0 7,0
8,0 8,0 8,0 8,0 8,0 16,0 16,0 2,0 x 12,0 ●
10,0 10,0 10,0 10,0 10,0 18,0 18,0 2,5 x 14,0 ●
10,0 2,5 x 16,0 ●

For easy use of the tool The screw:
selector: You are using a screw for a wooden
The green coloured areas in the above application (DIN 95) size 2,5 mm Ø.
table show an example.
Your driving machine:
Your driving machine is a e.g. Bosch and
has a fitting for a Wera series 4 bit.

The result:
The bit you are looking for is a Wera
series 4 bit and has the article no. 800/4.

432
