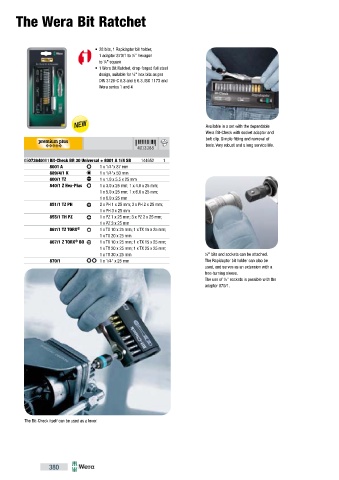

The Wera Bit Ratchet

• 28 bits, 1 Rapidaptor bit holder,
1 adaptor 870/1 to ¼" hexagon
to ¼" square
• 1 Wera Bit Ratchet, drop-forged full steel
design, suitable for ¼" hex bits as per
DIN 3126-C 6.3 and E 6.3, ISO 1173 and
Wera series 1 and 4

Available in a set with the dependable
Wera Bit-Check with socket adaptor and
belt clip. Simple fitting and removal of
tools. Very robust and a long service life.
4013288

05073640001 Bit-Check BR 30 Universal + 8001 A 1/4 SB 144652 1
8001 A 1 x 1/4"x 87 mm
889/4/1 K 1 x 1/4"x 50 mm
800/1 TZ 1 x 1.0 x 5.5 x 25 mm
840/1 Z Hex-Plus 1 x 3.0 x 25 mm; 1 x 4.0 x 25 mm;
1 x 5.0 x 25 mm; 1 x 6.0 x 25 mm;
1 x 8.0 x 25 mm
851/1 TZ PH 2 x PH 1 x 25 mm; 3 x PH 2 x 25 mm;
1 x PH 3 x 25 mm
855/1 TH PZ 1 x PZ 1 x 25 mm; 3 x PZ 2 x 25 mm;
1 x PZ 3 x 25 mm
867/1 TZ TORX 1 x TX 10 x 25 mm; 1 x TX 15 x 25 mm;
®
1 x TX 20 x 25 mm
867/1 Z TORX BO 1 x TX 10 x 25 mm; 1 x TX 15 x 25 mm;
®
1 x TX 20 x 25 mm; 1 x TX 25 x 25 mm;
1 x TX 30 x 25 mm ¼" bits and sockets can be attached.
870/1 1 x 1/4" x 25 mm The Rapidaptor bit holder can also be
used, and serves as an extension with a
free-turning sleeve.
The use of ¼" sockets is possible with the
adaptor 870/1.

The Bit-Check itself can be used as a lever.
