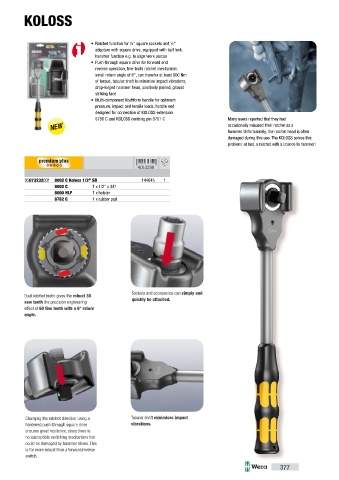

Page 381 - WERA katalógus

KOLOSS

• Ratchet function for ½" square sockets and ½"
adaptors with square drive, equipped with ball lock,
hammer function e.g. to align work pieces
• Push-through square drive for forward and
reverse operation, fine-tooth ratchet mechanism,
small return angle of 6°, can transfer at least 600 Nm
of torque, tubular shaft to minimise impact vibrations,
drop-forged hammer head, positively pinned, ground
striking face
• Multi-component Kraftform handle for optimum
pressure, impact and tensile loads, handle end
designed for connection of KOLOSS extension
8780 C and KOLOSS centring pin 8781 C Many users reported that they had
occasionally misused their ratchet as a
hammer. Unfortunately, the ratchet head is often
damaged during this use. The KOLOSS solves this
problem: at last, a ratchet with a licence to hammer!

05073232001 8002 C Koloss 1/2" SB 144645 1
8002 C 1 x 1/2" x 341
8000 HLF 1 x holster
8782 C 1 x rubber pad

Sockets and accessories can simply and
Dual ratchet teeth: gives the robust 30
saw teeth the precision engineering quickly be attached.
effect of 60 fine teeth with a 6° return
angle.

Changing the ratchet direction using a Tubular shaft minimises impact
hardened push-through square drive vibrations.
ensures great resilience, since there is
no susceptible switching mechanism that
could be damaged by hammer blows. This
is far more robust than a forward/reverse
switch.

377
