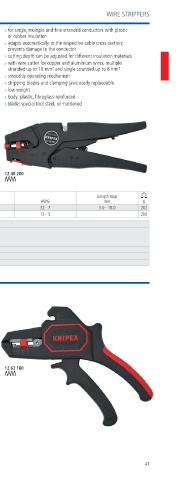

WIRE STRIPPERS

Self-Adjusting Insulation Strippers > for single, multiple and fine stranded conductors with plastic
12 or rubber insulation
> adapts automatically to the respective cable cross section;
prevents damage to the conductor
> cutting depth can be adjusted for different insulation materials
> with wire cutter for copper and aluminium wires, multiple
stranded up to 10 mm² and single stranded up to 6 mm²
> smoothly operating mechanism
> stripping blades and clamping jaws easily replaceable
> low weight
> body: plastic, fibreglass reinforced
> blade: special tool steel, oil hardened

12 0 200: Adjustable length stop 12 0 200: Precise stripping prevents damage
to the conductor
12 40 200
for thin ribbon cables up to 10 mm width in a single pass

12 40 200

EAN Stripping capacities Length stop
Article No 003773 mm mm² AWG mm g
12 40 200 026662 200 0 03 10 32 7 3 0 18 0 202
12 50 200 03 07 200 2 5 16 13 5 200

12 49 01 026679 1 pair of spare blades for 12 0 200
12 49 02 026686 1 pair of spare clamping jaws for 12 0 200
12 49 03 026693 Spare length stop for 12 0 200
12 49 04 053071 Torsion spring for 12 0/50 200
12 49 05 053088 Coil spring in the head for 12 0/50 200
12 59 01 03 1 1 pair of spare blades for 12 50 200
12 59 02 03 21 1 pair of spare clamping jaws for 12 50 200

Automatic Insulation Stripper 12
62

> compact standard tool at a favourable price for all
current cable cross sections and insulating materials
> for single, multiple and fine stranded cables of 0 2 up
to 6 mm² with standard insulation
> adapts automatically to the respective cable cross section;
prevents damage to the conductor
> high operation comfort thanks to handy shape and low weight
narrow head style for use in confined areas
> with wire cutter for copper and aluminium wires up to 2 5 mm²
> with adjustable length stop from 6 0 18 0 mm for cutting 12 62 180
the same stripping lengths during repetitive work
> body: plastic, fibreglass reinforced
> blades: special tool steel, oil hardened, interchangeable

EAN Stripping capacities
Article No 003773 mm mm² AWG g
12 62 180 05 573 180 0 2 6 2 10 151
12 69 21 060093 1 pair of spare blades for 12 62 180
12 69 23 067115 Spare length stop for12 62 180
