Page 424 - KNIPEX katalógus

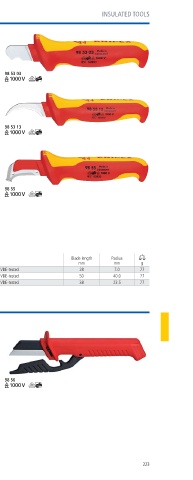

INSULATED TOOLS

Dismantling Knives 98
IEC 60900 DIN EN 60900 5

> ergonomically improved handle shape with comfortable slip guard
> particularly confident grip thanks to slip proof soft components
> thumb recess and “finger hook” at the end of the handle ensure
a good transmission of force when the blade is pulled 98 53 03
> transparent protective cap

98 53 03
solid, fixed hook blade; suitable for round cables;
blade: special tool steel, oil hardened
98 53 13
narrow, fixed hook blade, sickle shaped; suitable for
sector cables; blade: special tool steel, oil hardened
98 53 13
98 55
solid, fixed hook blade, sickle shaped; with guide shoe
at the blade point; no damage of the conductor insulation;
blade: surgical steel, stainless, vacuum hardened

98 55

Guide shoe 98 55

EAN $lade length Radius
Article No 003773 mm Handle mm mm g
98 53 03 0265 9 155 insulating multi component handle, VDE tested 28 7 0 77
98 53 13 026556 180 insulating multi component handle, VDE tested 50 0 0 77
98 55 022558 155 insulating multi component handle, VDE tested 38 23 5 77

Cable Knife
with replaceable blade 98
IEC 60900 DIN EN 60900 5

> straight blade with special sharpening; replaceable
> with hinged blade guard, integrated in the handle, captive
> back of the blade plastic coated to avoid short circuits
> ergonomically shaped insulating handle
> blade: surgical steel, stainless, vacuum hardened
98 56

EAN $lade length
Article No 003773 mm mm g
98 56 026570 185 50 6

98 56 SB 033516 185 50 6
98 56 09 030829 Spare blade for 98 56
223
