CRIMPING PLIERS

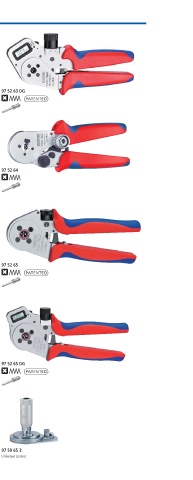

Four-Mandrel Crimping Pliers
97
for turned contacts 52

> for crimping turned contacts
> four mandrel crimping for top quality crimping connections
> mandrel gauge to check the basic setting
> repetitive, high crimping quality due to integral lock
(self releasing mechanism)
> optimum transmission of force due to highly effective lever 97 52 63 DG
action for fatigue reduced operation

> high operation comfort thanks to handy shape
> Chrome vanadium electric steel in special quality, oil hardened

97 52 63
fine adjustment of pressure depending on the conductor‘s diameter by means of
adjusting wheel; pliers in a plastic case with foam insert and standard locator for
precise positioning of the contacts
97 52 63 DG
crimping capacity can be adjusted in increments of 0 01 mm; with digital display of
the preset crimping capacities and possibility of re calibration via RESET function with
electronic wear monitoring; adjustment in mm, inches or comparable selection positions
according to MIL; pliers in a plastic case with foam insert and standard locator for 97 52 64
precise positioning of the contacts

97 52 64
pressure adjustment depending on the conductor‘s diameter by means of adjusting
wheel in different positions; locator for positioning the contacts
97 52 65
fine adjustment of pressure depending on the conductor‘s diameter by means of
adjusting wheel; locator for positioning the contacts; with table for calculating the
settings; pliers in a plastic case with foam insert
97 52 65 A
fine adjustment of pressure depending on the conductor‘s diameter by means of
adjusting wheel; with table for calculating the settings; pliers in a plastic case with
foam insert
97 52 65 DG
crimping capacity can be adjusted in increments of 0 01 mm; with digital display of
the preset crimping capacities and possibility of re calibration via RESET function with 97 52 65
electronic wear monitoring; adjustment in mm, inches or comparable selection positions
according to MIL; with table for calculating the settings; pliers in a plastic case with
foam insert and standard locator for precise positioning of the contacts
97 52 65 DG A
crimping capacity can be adjusted in increments of 0 01 mm; with digital display of
the preset crimping capacities and possibility of re calibration via RESET function with
electronic wear monitoring; adjustment in mm, inches or comparable selection positions
according to MIL; with table for calculating the settings; pliers in a plastic case with
foam insert; without locator
97 59 65 2
universal locator for holding turned contacts for crimping; precisely adjustable to the
length (20 5 mm) and diameter (1 8 mm) of the crimping connector; locator that
is universally adjustable (in length and diameter) for the repeatable exact alignment
of turned contacts in crimping pliers; can be set to all commercially available turned
contacts in the four mandrel crimping pliers’ capacity range

97 52 65 DG

Turned contacts are used for particularly demanding plug-type
connections, e.g. in medical industry and aeronautics.
'ZVTGOGN[ TGNKCDNG ETKORKPI EQPPGEVKQPU ECP DG CEJKGXGF QPN[ YKVJ
pliers that work with absolute precision and maintain the required
crimping depth in the 1/100 mm range. 97 59 65 2
Universal Locator
