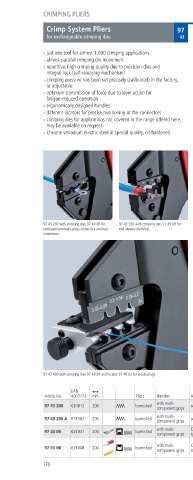

Page 317 - KNIPEX katalógus

CRIMPING PLIERS

Crimp System Pliers 97
for exchangeable crimping dies 43

> just one tool for almost 1,000 crimping applications
> almost parallel crimping die movement
> repetitive, high crimping quality due to precision dies and
integral lock (self releasing mechanism)
> crimping pressure has been set precisely (calibrated) in the factory,
re adjustable
> optimum transmission of force due to lever action for
fatigue reduced operation
> ergonomically designed handles
> different locators for precise positioning of the connectors
> crimping dies for applications not covered in the range offered here, 97 43 200
may be available on request
> Chrome vanadium electric steel in special quality, oil hardened

97 43 200 A

97 3 200 with crimping dies 97 9 06 for 97 3 200 with crimping dies 97 9 09 for
insulated terminals, plug connectors and butt end sleeves (ferrules)
connectors 97 43 05
with attached crimping dies for non insulated open plug type connectors
( 8 and 6 3 mm connector width)
9743 06
with attached crimping dies for insulated terminals and plug connectors
97 43 200
comes in a plastic case; foam insert with recesses for crimping dies and locators;
with service tool (Allen key), screws and nuts; without crimping dies
97 43 200 A
pliers without crimping dies, without case

9KVJ VJG RQUUKDKNKV[ QH ETKORKPI CNOQUV CNN EWTTGPVN[ CXCKNCDNG
crimping connections with just one tool and state-of-the-art crimping
RNKGTU VGEJPQNQI[ VJG ETKOR U[UVGO RNKGTU UQNXGU CNOQUV CNN VCUMU KP
mobile and stationary crimping technology and is an excellent tool
for professionals to use for standard crimping.

97 3 00 with crimping dies 97 9 2 and locator 97 9 93 for D Sub plugs

EAN Capacity
Article No 003773 mm Pliers Handles Applications mm² AWG g
with multi
97 43 200 030812 200 burnished see crimping dies table 988
component grips
with multi
97 43 200 A 071587 200 burnished component grips see crimping dies table 57
with multi Crimp System Pliers for non insulated open plug
97 43 05 031031 200 burnished component grips type connectors ( 8 and 6 3 mm connector width) 0 5 6 20 10 618
with multi Crimp System Pliers for insulated terminals plug
97 43 06 0310 8 200 burnished component grips connectors and butt connectors 0 5 6 20 10 610

170
