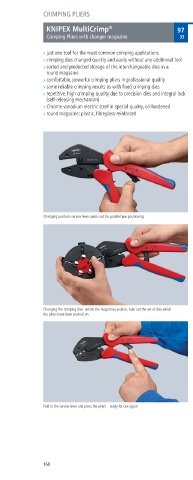

CRIMPING PLIERS

®
KNIPEX MultiCrimp 97
Crimping Pliers with changer magazine 33

> just one tool for the most common crimping applications
> crimping dies changed quickly and easily without any additional tool
> sorted and predected storage of the interchangeable dies in a
round magazine
> comfortable, powerful crimping pliers in professional quality
> same reliable crimping results as with fixed crimping dies
> repetitive, high crimping quality due to precision dies and integral lock
(self releasing mechanism) 97 33 01
> Chrome vanadium electric steel in special quality, oil hardened
> round magazine: plastic, fibreglass reinforced

97 33 01
Crimping pliers with round magazine and three interchangeable crimping
die sets for non insulated open plug type connectors (plug width 8 6 3 mm)
from 0 5 6 mm²; for insulated terminals, plug connectors and butt connectors
from 0 5 6 mm² and for insulated and non insulated end sleeves (ferrules)
from 0 25 6 mm²

Now also for insulated and non-insulated end
UNGGXGU HGTTWNGU OOŽ
7PKXGTUCN KPFGPV ETKORKPI FKG HQT PQP KPUWNCVGF EQPPGEVQTU
Changing position: service lever opens out for parallel jaw positioning

97 33 02

Changing the crimping dies: unlock the magazine position, take out the set of dies which
the pliers have been pushed on

97 33 02
Crimping pliers with round magazine and five interchangeable crimping
dies for non insulated open plug type connectors (plug width 8 6 3 mm)
from 0 5 6 mm²; for insulated terminals, plug connectors and butt connectors
from 0 5 6 mm²; for insulated and non insulated end sleeves (ferrules)
from 0 25 6 mm²; for insulated and non insulated end sleeves (ferrules) with
10 / 16 / 25 mm² and for non insulated crimp terminals tube and compression
cable lugs in accordance with DIN 623 and DIN 6235 and non insulated crimp,
butt and press connectors in accordance with DIN 63 1 and DIN 6267

Fold in the service lever and press the pliers – ready for use again

%QORCEV KPGZRGPUKXG CPF NKIJV YGKIJV ETKORKPI RNKGTU HQT
fitting and repairs. The electrician needs only one tool now
KPUVGCF QH HKXG CU DGHQTG
