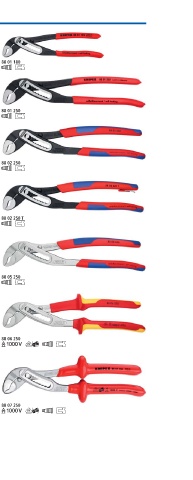

WATERPUMP PLIERS
KNIPEX Alligator ®
Water Pump Pliers
DIN ISO 8976 88
/QTG QWVRWV CPF EQOHQTV EQORCTGF VQ EQPXGPVKQPCN 88 01 180
water pump pliers of the same length: 9-notch adjustment
positioning for 30 % more gripping capacity
Good access to the workpiece due to slim size of head
and joint area
> self locking on pipes and nuts: no slipping on the workpiece
and low handforce required
> gripping surfaces with special hardened teeth, teeth hardness 88 01 250
approx 61 HRC: low wear and stable gripping
> box joint design: high stability because of the double guide
> robust construction, insensitive to dirt; particularly suitable for
outdoor work
> guard prevents operators‘ fingers being pinched
> Chrome vanadium electric steel, forged, multi stage oil hardened
88 02 250 / 88 02 250 T* / 88 05 250 88 02 250
with slim multi component grips without collar for better
handling and easier transport
88 02 250 / 88 02 300 T*
Pliers with tether attachment point for mounting a fall protection
88 02 250 T
88 05 250
88 06 250
88 07 250
Self locking on pipes and nuts: no slipping on the workpiece; the complete actuating force
can be used to turn the workpieces; not having to squeeze the pliers handles reduces the
required effort
