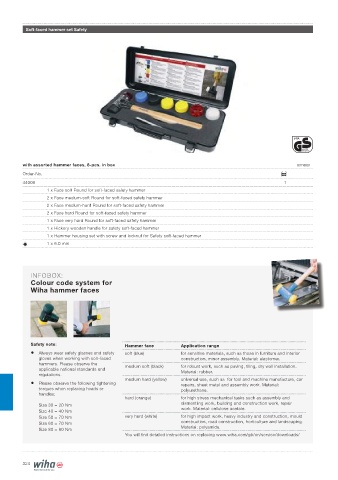

Page 324 - Wiha catalogue 2022

Soft-faced hammer set Safety

with assorted hammer faces, 8-pcs. in box 832B801
Order-No.
44008 1
1 x Face soft Round for soft-faced safety hammer
2 x Face medium-soft Round for soft-faced safety hammer
2 x Face medium-hard Round for soft-faced safety hammer
2 x Face hard Round for soft-faced safety hammer
1 x Face very hard Round for soft-faced safety hammer
1 x Hickory wooden handle for safety soft-faced hammer
1 x Hammer housing set with screw and locknut for Safety soft-faced hammer
1 x 6.0 mm

INFOBOX:
Colour code system for
Wiha hammer faces

Safety note: Hammer face Application range
• Always wear safety glasses and safety soft (blue) for sensitive materials, such as those in furniture and interior
gloves when working with soft-faced construction, minor assembly. Material: elastomer.
hammers. Please observe the medium soft (black) for robust work, such as paving, tiling, dry wall installation.
applicable national standards and Material: rubber.
regulations.
medium hard (yellow) universal use, such as for tool and machine manufacture, car
• Please observe the following tightening repairs, sheet metal and assembly work. Material:
torques when replacing heads or polyurethane.
handles:
hard (orange) for high stress mechanical tasks such as assembly and
dismantling work, building and construction work, repair
Size 30 = 20 Nm
Size 40 = 40 Nm work. Material: cellulose acetate.
Size 50 = 70 Nm very hard (white) for high impact work, heavy industry and construction, mould
Size 60 = 70 Nm construction, road construction, horticulture and landscaping.
Size 80 = 80 Nm Material: polyamide.
You will find detailed instructions on replacing www.wiha.com/gb/en/service/downloads/

324
