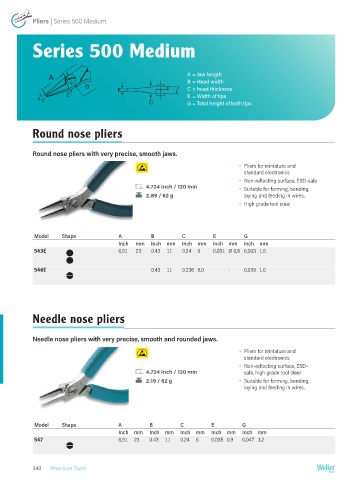

P. 340
Pliers | Series 500 Medium
Series 500 Medium
A = Jaw length
B = Head width
C = head thickness
E = Width of tips
G = Total height of both tips
Round nose pliers
Round nose pliers with very precise, smooth jaws.
Pliers for miniature and
standard electronics
Non-reflecting surface, ESD-safe
4.724 Inch / 120 mm Suitable for forming, bending,
2.89 / 62 g laying and feeding in wires.
High grade tool steel
Model Shape A B C E G
Inch mm Inch mm Inch mm Inch mm Inch mm
543E 0.91 23 0.43 11 0.24 6 0.031 Ø 0,8 0.063 1.6
546E 0.43 11 0.236 6.0 - 0.039 1.0
Needle nose pliers
Needle nose pliers with very precise, smooth and rounded jaws.
Pliers for miniature and
standard electronics
Non-reflecting surface, ESD-
4.724 Inch / 120 mm safe, high grade tool steel
2.19 / 62 g Suitable for forming, bending,
laying and feeding in wires.
Model Shape A B C E G
Inch mm Inch mm Inch mm Inch mm Inch mm
547 0.91 23 0.43 11 0.24 6 0.035 0.9 0.047 1.2
340 Precision Tools
