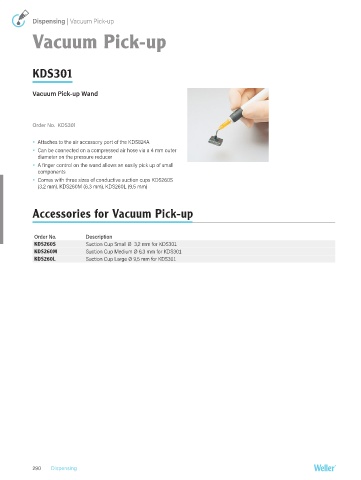

Page 290 - weller
P. 290

Dispensing | Vacuum Pick-up

            Vacuum Pick-up






            KDS301


            Vacuum Pick-up Wand





            Order No.  KDS301

               Ÿ Attaches to the air accessory port of the KDS824A
               Ÿ Can be connected on a compressed air hose via a 4 mm outer
             diameter on the pressure reducer
               Ÿ A finger control on the wand allows an easily pick up of small
             components
               Ÿ Comes with three sizes of conductive suction cups KDS260S
             (3,2 mm), KDS260M (6,3 mm), KDS260L (9,5 mm)


            Accessories for Vacuum Pick-up




            Order No.        Description
            KDS260S          Suction Cup Small Ø  3,2 mm for KDS301
            KDS260M          Suction Cup Medium Ø 6,3 mm for KDS301
            KDS260L          Suction Cup Large Ø 9,5 mm for KDS301









































            290   Dispensing
