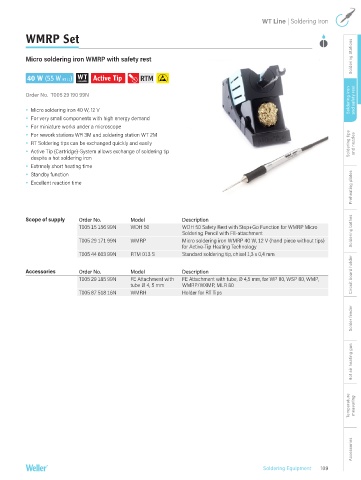

Page 109 - weller
P. 109
WT Line | Soldering Iron
WMRP Set
Soldering Stations
Micro soldering iron WMRP with safety rest
40 W (55 W RT 11) Active Tip RTM
Soldering iron and safety rest
Order No. T005 29 190 99N
Micro soldering iron 40 W, 12 V
For very small components with high energy demand
For miniature works under a microscope
For rework stations WR 3M and soldering station WT 2M
RT Soldering tips can be exchanged quickly and easily Soldering tips and nozzles
Active Tip (Cartridge)-System allows exchange of soldering tip
despite a hot soldering iron
Extrmely short heating time
Standby function
Preheating plates
Excellent reaction time
Scope of supply Order No. Model Description
T005 15 156 99N WDH 50 WDH 50 Safety Rest with Stop+Go Function for WMRP Micro
Soldering Pencil with FE-attachment Soldering bathes
T005 29 171 99N WMRP Micro soldering iron WMRP 40 W, 12 V (hand piece without tips)
for Active-Tip Heating Technology
T005 44 603 99N RTM 013 S Standard soldering tip, chisel 1,3 x 0,4 mm
Accessories Order No. Model Description
T005 29 185 99N FE Attachment with FE Attachment with tube, Ø 4,5 mm, for WP 80, WSP 80, WMP, Circuit board holder
tube Ø 4, 5 mm WMRP/WXMP, MLR 80
T005 87 518 16N WMRH Holder for RT Tips
Solder feeder
Hot air heating gun
Temperature measuring
Accessories
Soldering Equipment 109
