Page 8 - JBC classic széria

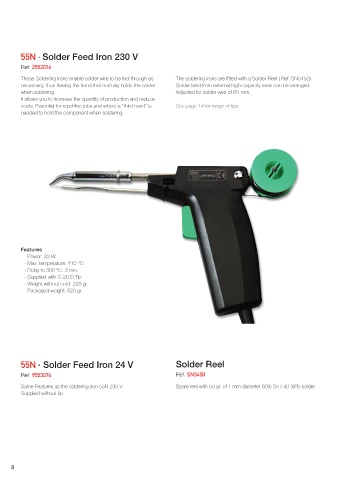

55N · Solder Feed Iron 230 V

Ref. 2552016
These Soldering Irons enable solder wire to be fed through as The soldering irons are fitted with a Solder Reel ( Ref: SN5450).
necessary, thus freeing the hand that normaly holds the solder Solder feed from external high-capacity reels can be arranged.
when soldering. Adjusted for solder wire of Ø1 mm.
It allows you to increase the quantity of production and reduce
costs. Essential for repetitive jobs and where a “third hand” is See page 14 for range of tips.
needed to hold the component when soldering.

Features
- Power: 33 W
- Max. temperature: 410 °C
- Delay to 300 °C: 3 min.
- Supplied with C-20 D Tip
- Weight without cord: 228 gr.
- Packaged weight: 520 gr.

55N · Solder Feed Iron 24 V Solder Reel

Ref. 9553074 Ref. SN5450
Same Features as the soldering iron 55N 230 V. Spare reel with 50 gr. of 1 mm diameter 60% Sn / 40 %Pb solder.
Supplied without tip.

8
