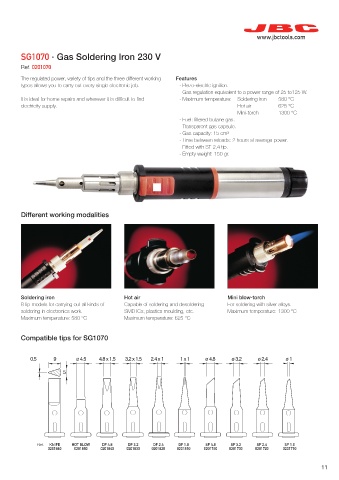

SG1070 · Gas Soldering Iron 230 V

Ref. 0201070
The regulated power, variety of tips and the three different working Features
types allows you to carry out every single electronic job. - Piezo-electric ignition.
- Gas regulation equivalent to a power range of 25 to125 W.
It is ideal for home repairs and wherever it is difficult to find - Maximum temperature: Soldering iron 580 °C
electricity supply. Hot air 625 °C
Mini-torch 1300 °C
- Fuel: filtered butane gas.
- Transparent gas capsule.
- Gas capacity: 15 cm 3
- Time between reloads: 2 hours at average power.
- Fitted with SF 2,4 tip.
- Empty weight: 150 gr.

Different working modalities

Soldering iron Hot air Mini blow-torch
8 tip models for carrying out all kinds of Capable of soldering and desoldering For soldering with silver alloys.
soldering in electronics work. SMD ICs, plastics moulding, etc. Maximum temperature: 1300 °C
Maximum temperature: 580 °C Maximum temperature: 625 °C

Compatible tips for SG1070

0.5 9 ø 4.5 4.8 x 1.5 3.2 x 1.5 2.4 x 1 1 x 1 ø 4.8 ø 3.2 ø 2.4 ø 1

5

KNIFE
HOT BLOW
SF 1.0
DF 1.0
SF 4.8
Ref. Knife Hot Blow DF 4.8 DF 3.2 DF 2.4 DF 1.0 SF 4.8 SF 3.2 SF 2.4 SF 1.0
SF 3.2
DF 3.2
DF 2.4
SF 2.4
DF 4.8
0201720
0201710
0201730
0201740
0201840
0201850
0201860
0201810
0201820
0201830
0201860 0201850 0201840 0201830 0201820 0201810 0201740 0201730 0201720 0201710
