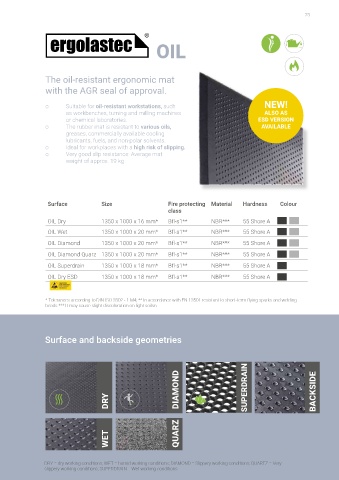

Page 23 - Kraiburg catalogue

23

OIL

The oil-resistant ergonomic mat
with the AGR seal of approval.

o Suitable for oil-resistant workstations, such NEW!
as workbenches, turning and milling machines ALSO AS
or chemical laboratories. ESD VERSION
o The rubber mat is resistant to various oils, AVAILABLE
greases, commercially available cooling
lubricants, fuels, and non-polar solvents.
o Ideal for workplaces with a high risk of slipping.
o Very good slip resistance: Average mat
weight of approx. 19 kg

Surface Size Fire protecting Material Hardness Colour
class

OIL Dry 1350 x 1000 x 16 mm* Bfl-s1** NBR*** 55 Shore A
OIL Wet 1350 x 1000 x 20 mm* Bfl-s1** NBR*** 55 Shore A
OIL Diamond 1350 x 1000 x 20 mm* Bfl-s1** NBR*** 55 Shore A

OIL Diamond Quarz 1350 x 1000 x 20 mm* Bfl-s1** NBR*** 55 Shore A
OIL Superdrain 1350 x 1000 x 18 mm* Bfl-s1** NBR*** 55 Shore A

OIL Dry ESD 1350 x 1000 x 18 mm* Bfl-s1** NBR*** 55 Shore A

* Tolerances according to DIN ISO 3302 - 1 M4; ** In accordance with EN 13501 resistant to short-term flying sparks and welding
beads *** It may cause slight discoloration on light soilsn

Surface and backside geometries

DIAMOND SUPERDRAIN BACKSIDE

DRY

WET QUARZ

DRY = dry working conditions; WET = humid working conditions; DIAMOND = Slippery working conditions; QUARTZ = Very
slippery working conditions; SUPERDRAIN = Wet working conditions
