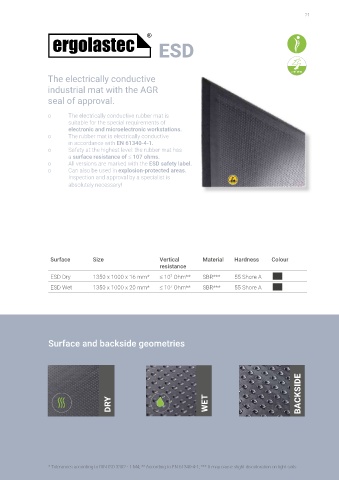

Page 21 - Kraiburg catalogue
P. 21

21




                                         ESD






                  The electrically conductive
                  industrial mat with the AGR

                  seal of approval.

                  o      The electrically conductive rubber mat is
                         suitable for the special requirements of
                         electronic and microelectronic workstations.
                  o      The rubber mat is electrically conductive
                         in accordance with EN 61340-4-1.
                  o      Safety at the highest level: the rubber mat has
                         a surface resistance of ≤ 107 ohms.
                  o      All versions are marked with the ESD safety label.
                  o      Can also be used in explosion-protected areas.
                         Inspection and approval by a specialist is
                         absolutely necessary!














                   Surface        Size                   Vertical       Material   Hardness     Colour
                                                         resistance
                   ESD Dry        1350 x 1000 x 16 mm*   ≤ 10  Ohm**    SBR***     55 Shore A
                                                             7
                   ESD Wet        1350 x 1000 x 20 mm*   ≤ 10  Ohm**    SBR***     55 Shore A
                                                             7









                  Surface and backside geometries






                                                                                                           BACKSIDE



                                        DRY                               WET













                  * Tolerances according to DIN ISO 3302 - 1 M4; ** According to EN 61340-4-1; *** It may cause slight discoloration on light soils
