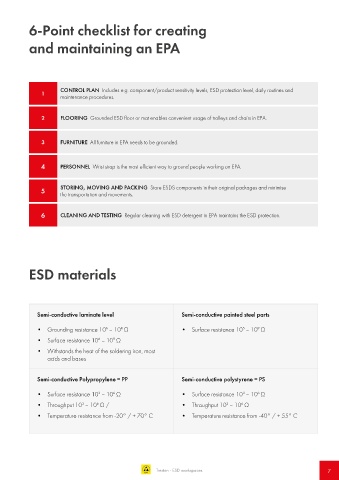

6-Point checklist for creating
and maintaining an EPA
CONTROL PLAN Includes e.g. component/product sensitivity levels, ESD protection level, daily routines and
1
maintenance procedures.
2 FLOORING Grounded ESD floor or mat enables convenient usage of trolleys and chairs in EPA.
3 FURNITURE All furniture in EPA needs to be grounded.
4 PERSONNEL Wrist strap is the most efficient way to ground people working on EPA.
5 STORING, MOVING AND PACKING Store ESDS components in their original packages and minimise
the transportation and movements.
6 CLEANING AND TESTING Regular cleaning with ESD detergent in EPA maintains the ESD protection.
ESD materials
Semi-conductive laminate level Semi-conductive painted steel parts
6
9
• Grounding resistance 10 – 10 Ω • Surface resistance 10 – 10 Ω
8
5
• Surface resistance 10 – 10 Ω
6
9
• Withstands the heat of the soldering iron, most
acids and bases
Semi-conductive Polypropylene = PP Semi-conductive polystyrene = PS
6
• Surface resistance 10 – 10 Ω • Surface resistance 10 – 10 Ω
3
3
6
6
3
3
• Throughput 10 – 10 Ω / • Throughput 10 – 10 Ω
6
• Temperature resistance from -20° / + 70° C • Temperature resistance from -40° / + 55° C
Treston - ESD workspaces 7
