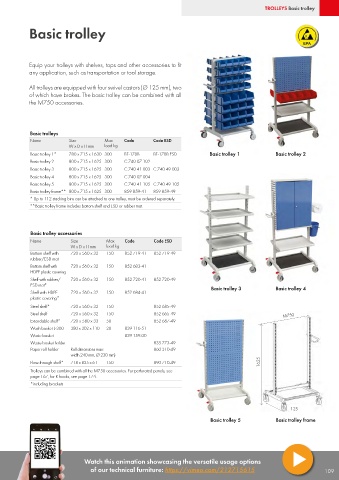

Page 109 - Treston main catalogue 2021

TROLLEYS Basic trolley

Basic trolley

Equip your trolleys with shelves, tops and other accessories to fit
any application, such as transportation or tool storage.

All trolleys are equipped with four swivel castors (Ø 125 mm), two
of which have brakes. The basic trolley can be combined with all
the M750 accessories.

Basic trolleys
Name Size Max Code Code ESD
W x D x H mm load kg
Basic trolley 1* 780 x 715 x 1630 300 BT-170B BT-170B ESD Basic trolley 1 Basic trolley 2
Basic trolley 2 800 x 715 x 1625 300 C 740 07 102
Basic trolley 3 800 x 715 x 1625 300 C 740 41 003 C 740 49 003
Basic trolley 4 800 x 715 x 1625 300 C 740 07 004
Basic trolley 5 800 x 715 x 1625 300 C 740 41 105 C 740 49 105
Basic trolley frame** 800 x 715 x 1625 300 859 859-41 859 859-49
* Up to 112 stacking bins can be attached to one trolley, must be ordered separately.
**Basic trolley frame includes bottom shelf and ESD or rubber mat.

Basic trolley accessories
Name Size Max Code Code ESD
W x D x H mm load kg
Bottom shelf with 720 x 560 x 32 150 852 719-41 852 719-49
rubber/ESD mat
Bottom shelf with 720 x 560 x 32 150 852 683-41
HDPE plastic covering
Shelf with rubber/ 720 x 560 x 32 150 852 720-41 852 720-49
ESD mat* Basic trolley 3 Basic trolley 4
Shelf with HDPE 720 x 560 x 32 150 852 684-41
plastic covering*
Steel shelf* 720 x 560 x 32 150 852 685-49
Steel shelf 720 x 560 x 32 150 852 665-49 M750
Extendable shelf* 720 x 580 x 33 50 852 687-49
Wash basket L-300 380 x 302 x 110 20 839 116-51
Waste basket 839 159-00
Waste basket holder 835 773-49
Paper roll holder Roll dimensions max: 860 310-49
width 240 mm, Ø 230 mm)
1625
Flow-through shelf* 718 x 835 x 61 150 890 710-49
Trolleys can be combined with all the M750 accessories. For perforated panels, see
page 167, for R-hooks, see page 174.
*including brackets

125
Basic trolley 5 Basic trolley frame

Watch this animation showcasing the versatile usage options
of our technical furniture: https://vimeo.com/212715615 109
Treston - For a better work environment
