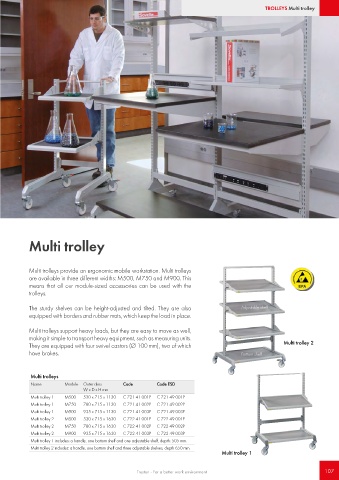

Page 107 - Treston main catalogue 2021

TROLLEYS Multi trolley

Multi trolley

Multi trolleys provide an ergonomic mobile workstation. Multi trolleys
are available in three different widths: M500, M750 and M900. This
means that all our module-sized accessories can be used with the
trolleys.

The sturdy shelves can be height-adjusted and tilted. They are also Adjustable shelf
equipped with borders and rubber mats, which keep the load in place.

Multi trolleys support heavy loads, but they are easy to move as well,
making it simple to transport heavy equipment, such as measuring units.
They are equipped with four swivel castors (Ø 100 mm), two of which Multi trolley 2
have brakes. Bottom shelf

Multi trolleys
Name Module Outer dims Code Code ESD
W x D x H mm
Multi trolley 1 M500 530 x 715 x 1130 C 721 41 001P C 721 49 001P
Multi trolley 1 M750 780 x 715 x 1130 C 721 41 002P C 721 49 002P
Multi trolley 1 M900 935 x 715 x 1130 C 721 41 003P C 721 49 003P
Multi trolley 2 M500 530 x 715 x 1630 C 722 41 001P C 722 49 001P
Multi trolley 2 M750 780 x 715 x 1630 C 722 41 002P C 722 49 002P
Multi trolley 2 M900 935 x 715 x 1630 C 722 41 003P C 722 49 003P
Multi trolley 1 includes: a handle, one bottom shelf and one adjustable shelf, depth: 505 mm.
Multi trolley 2 includes: a handle, one bottom shelf and three adjustable shelves, depth 650 mm.
Multi trolley 1
