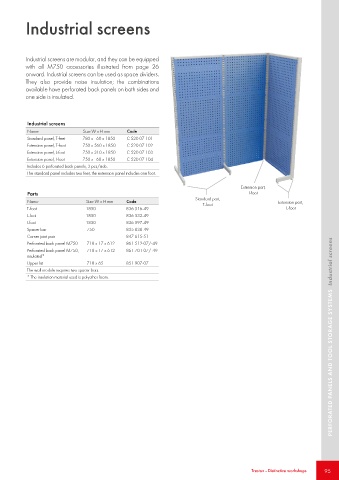

Page 95 - Treston

Industrial screens

Industrial screens are modular, and they can be equipped
with all M750 accessories illustrated from page 26
onward. Industrial screens can be used as space dividers.
They also provide noise insulation; the combinations
available have perforated back panels on both sides and
one side is insulated.

Industrial screens
Name Size W x H mm Code
Standard panel, T-feet 780 x 60 x 1850 C 520 07 101
Extension panel, T-foot 750 x 560 x 1850 C 520 07 102
Extension panel, L-foot 750 x 310 x 1850 C 520 07 103
Extension panel, I-foot 750 x 60 x 1850 C 520 07 104
Includes 6 perforated back panels, 3 pcs/side.
The standard panel includes two feet, the extension panel includes one foot.

Extension part,
Parts I-foot
Standard part,
Name Size W x H mm Code Extension part,
T-foot
T-foot 1850 836 516-49 L-foot
L-foot 1850 836 532-49
I-foot 1850 836 597-49
Spacer bar 750 835 838-49
Corner joint pair 847 615-51
Perforated back panel M750 718 x 17 x 612 861 512-07/-49
Perforated back panel M750, 718 x 17 x 612 861 701-07/-49
insulated*
Upper list 718 x 65 851 907-07
The wall module requires two spacer bars.
* The insulation material used is polyether foam. PERFORATED PANELS AND TOOL STORAGE SYSTEMS Industrial screens
