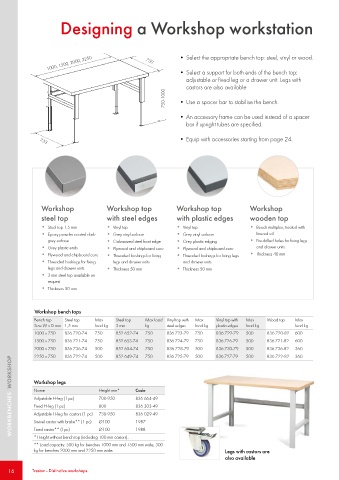

Designing a Workshop workstation

1000, 1500, 2000, 2250 750 • Select the appropriate bench top: steel, vinyl or wood.

• Select a support for both ends of the bench top:
adjustable or fixed leg or a drawer unit. Legs with
castors are also available
750-1000 • Use a spacer bar to stabilise the bench.

• An accessory frame can be used instead of a spacer
bar if upright tubes are specified.

• Equip with accessories starting from page 24.
733

Workshop Workshop top Workshop top Workshop
steel top with steel edges with plastic edges wooden top
• Steel top 1.5 mm • Vinyl top • Vinyl top • Beech multiplex, treated with
• Epoxy powder coated dark- • Grey vinyl surface • Grey vinyl surface linseed oil
grey surface • Galvanized steel front edge • Grey plastic edging • Pre-drilled holes for fixing legs
• Grey plastic ends • Plywood and chipboard core • Plywood and chipboard core and drawer units
• Plywood and chipboard core • Threaded bushings for fixing • Threaded bushings for fixing legs • Thickness 40 mm
• Threaded bushings for fixing legs and drawer units and drawer units
legs and drawer units • Thickness 50 mm • Thickness 50 mm
• 3 mm steel top available on
request
• Thickness 50 mm

Workshop bench tops
Bench top Steel top Max Steel top Max load Vinyl top with Max Vinyl top with Max Wood top Max
Size W x D mm 1,5 mm load kg 3 mm kg steel edges load kg plastic edges load kg load kg
1000 x 750 836 720-74 750 852 652-74 750 836 723-79 750 836 729-79 500 836 720-82 600
1500 x 750 836 721-74 750 852 653-74 750 836 724-79 750 836 726-79 500 836 721-82 600
2000 x 750 836 736-74 500 852 654-74 750 836 728-79 500 836 730-79 500 836 736-82 360
2250 x 750 836 722-74 500 852 649-74 750 836 725-79 500 836 727-79 500 836 722-82 360
WORKBENCHES WORKSHOP Workshop legs Height mm* Code

Name
836 664-49
700-950
Adjustable H-leg (1 pc)
836 303-49
Fixed H-leg (1 pc)
800
836 029-49
730-950
Adjustable H-leg for castors (1 pc)
Swivel castor with brake** (1 pc)
Ø100
Fixed castor** (1pc)
Ø100
1988
* Height without bench top (including 100 mm castors). 1987
** Load capacity: 500 kg for benches 1000 mm and 1500 mm wide, 300
kg for benches 2000 mm and 2250 mm wide. Legs with castors are
also available
