Page 109 - Treston

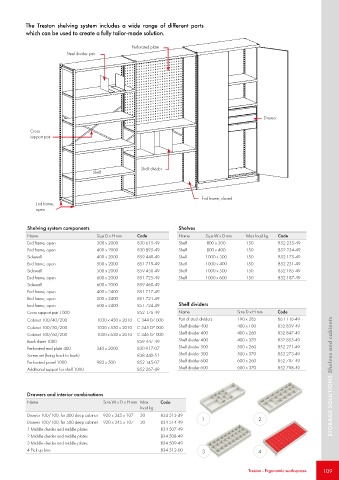

The Treston shelving system includes a wide range of different parts
which can be used to create a fully tailor-made solution.

Perforated plate
Steel divider pair

Drawer

Cross
support pair

Shelf divider
Shelf

End frame, closed
End frame,
open

Shelving system components Shelves
Name Size D x H mm Code Name Size W x D mm Max load kg Code
End frame, open 300 x 2000 830 615-49 Shelf 800 x 300 150 852 235-49
End frame, open 400 x 2000 830 895-49 Shelf 800 x 400 150 852 234-49
Sidewall 400 x 2000 859 440-49 Shelf 1000 x 300 150 852 175-49
End frame, open 500 x 2000 851 719-49 Shelf 1000 x 400 150 852 231-49
Sidewall 500 x 2000 859 450-49 Shelf 1000 x 500 150 852 185-49
End frame, open 600 x 2000 851 725-49 Shelf 1000 x 600 150 852 187-49
Sidewall 600 x 2000 859 460-49
End frame, open 400 x 2400 851 717-49
End frame, open 500 x 2400 851 721-49
End frame, open 600 x 2400 851 724-49 Shelf dividers
Cross support pair 1000 852 176-49 Name Size D x H mm Code
Cabinet 100/40/200 1030 x 430 x 2010 C 344 07 000 Pair of steel dividers 190 x 285 861 116-49
Cabinet 100/50/200 1030 x 530 x 2010 C 345 07 000 Shelf divider 400 400 x 180 832 839-49
Cabinet 100/60/200 1030 x 630 x 2010 C 346 07 000 Shelf divider 400 400 x 260 832 847-49
Back sheet 1000 859 447-49 Shelf divider 400 400 x 370 832 855-49
Perforated end plate 400 340 x 2000 830 917-07 Shelf divider 500 500 x 260 852 271-49
Screw set (fixing back to back) 838 440-51 Shelf divider 500 500 x 370 852 273-49
Perforated panel 1000 983 x 500 852 145-07 Shelf divider 600 600 x 260 852 797-49
Additional support for shelf 1000 852 267-49 Shelf divider 600 600 x 370 852 798-49 STORAGE SOLUTIONS Shelves and cabinets

Drawers and interior combinations
Name Size W x D x H mm Max Code
load kg
Drawer 100/100, for 400 deep cabinet 920 x 345 x 107 30 834 513-49 1 2
Drawer 100/100, for 500 deep cabinet 920 x 345 x 107 30 834 514-49
1 Middle divider and middle plates 834 507-49
2 Middle divider and middle plates 834 508-49
3 Middle divider and middle plates 834 509-49
4 Pick up bins 834 512-00 3 4

Treston - Ergonomic workspaces 109
