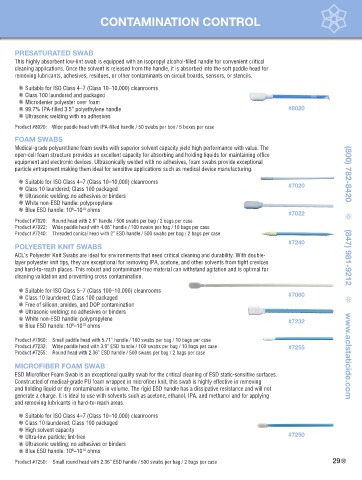

Page 29 - ACL Staticide catalogue

CONTAMINATION CONTROL

PRESATURATED SWAB
This highly absorbent low-lint swab is equipped with an isopropyl alcohol-filled handle for convenient critical
cleaning applications. Once the solvent is released from the handle, it is absorbed into the soft paddle head for
removing lubricants, adhesives, residues, or other contaminants on circuit boards, sensors, or stencils.

» Suitable for ISO Class 4–7 (Class 10–10,000) cleanrooms
» Class 100 laundered and packaged
» Convenient pop-up container » Microdenier polyester over foam
» 54% cellulose / 46% polyester hydroentangled low-lint fabric » 99.7% IPA-filled 3.5” polyethylene handle #8020
» High-purity electronics grade isopropyl alcohol » Ultrasonic welding with no adhesives
» Towel size: 5” x 8” perforated wipe Product #8020: Wide paddle head with IPA-filled handle / 50 swabs per box / 5 boxes per case
» Flammable; ships ground consumer commodity
FOAM SWABS
Medical-grade polyurethane foam swabs with superior solvent capacity yield high performance with value. The
open-cell foam structure provides an excellent capacity for absorbing and holding liquids for maintaining office
equipment and electronic devices. Ultrasonically welded with no adhesives, foam swabs provide exceptional
particle entrapment making them ideal for sensitive applications such as medical device manufacturing.

» Suitable for ISO Class 4–7 (Class 10–10,000) cleanrooms #7020
» Class 10 laundered; Class 100 packaged
» Ultrasonic welding; no adhesives or binders
» White non-ESD handle: polypropylene
» Blue ESD handle: 10 –10 ohms
8
10
#7022
Product #7020: Round head with 2.6” handle / 500 swabs per bag / 2 bags per case
Product #7022: Wide paddle head with 4.06” handle / 100 swabs per bag / 10 bags per case
Product #7240: Threaded conical head with 2” ESD handle / 500 swabs per bag / 2 bags per case
#7240
POLYESTER KNIT SWABS
ACL’s Polyester Knit Swabs are ideal for environments that need critical cleaning and durability. With double-
layer polyester knit tips, they are exceptional for removing IPA, acetone, and other solvents from tight crevices
and hard-to-reach places. This robust and contaminant-free material can withstand agitation and is optimal for
cleaning validation and preventing cross contamination. (800) 782-8420 (847) 981-9212 www.aclstaticide.com

» Suitable for ISO Class 5–7 (Class 100–10,000) cleanrooms
» Class 10 laundered; Class 100 packaged #7060
» Free of silicon, amides, and DOP contamination
» Ultrasonic welding; no adhesives or binders
» White non-ESD handle: polypropylene #7232
» Blue ESD handle: 10 –10 ohms
10
8
Product #7060: Small paddle head with 5.71” handle / 100 swabs per bag / 10 bags per case
Product #7232: Wide paddle head with 3.9” ESD handle / 100 swabs per bag / 10 bags per case #7255
Product #7255: Round head with 2.36” ESD handle / 500 swabs per bag / 2 bags per case

MICROFIBER FOAM SWAB
ESD Microfiber Foam Swab is an exceptional quality swab for the critical cleaning of ESD static-sensitive surfaces.
Constructed of medical-grade PU foam wrapped in microfiber knit, this swab is highly effective in removing
and holding liquid or dry contaminants in volume. The rigid ESD handle has a dissipative resistance and will not
generate a charge. It is ideal to use with solvents such as acetone, ethanol, IPA, and methanol and for applying
and removing lubricants in hard-to-reach areas.

» Suitable for ISO Class 4–7 (Class 10–10,000) cleanrooms
» Class 10 laundered; Class 100 packaged
» High solvent capacity
» Ultra-low particle; lint-free #7250
» Ultrasonic welding; no adhesives or binders
» Blue ESD handle: 10 –10 ohms
8
10
Product #7250: Small round head with 2.36” ESD handle / 500 swabs per bag / 2 bags per case 29
