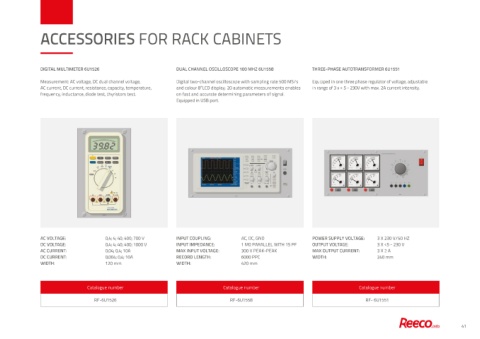

ACCESSORIES FOR RACK CABINETS






               DIGITAL MULTIMETER 6U1526                       DUAL CHANNEL OSCILLOSCOPE 100 MHZ 6U1558        THREE-PHASE AUTOTRANSFORMER 6U1551

               Measurement: AC voltage, DC dual channel voltage,    Digital two-channel oscilloscope with sampling rate 500 MS/s   Equipped in one three phase regulator of voltage, adjustable
               AC current, DC current, resistance, capacity, temperature,  and colour 8”LCD display. 20 automatic measurements enables   in range of 3 x < 5 - 230V with max. 2A current intensity.
               frequency, inductance, diode test, thyristors test.  on fast and accurate determining parameters of signal.
                                                               Equipped in USB port.





























               AC VOLTAGE:            0,4; 4; 40; 400; 700 V   INPUT COUPLING:        AC, DC, GND              POWER SUPPLY VOLTAGE:  3 X 230 V/50 HZ
               DC VOLTAGE:            0,4; 4; 40; 400; 1000 V  INPUT IMPEDANCE:       1 MΩ PARALLEL WITH 15 PF  OUTPUT VOLTAGE:      3 X <5 - 230 V
               AC CURRENT:            0,04; 0,4; 10A           MAX INPUT VOLTAGE:     300 V PEAK-PEAK          MAX OUTPUT CURRENT:   3 X 2 A
               DC CURRENT:            0,004; 0,4; 10A          RECORD LENGTH:         6000 PPC                 WIDTH:                240 mm
               WIDTH:                 120 mm                   WIDTH:                 420 mm



                                Catalogue number                               Catalogue number                                Catalogue number

                                  RF-6U1526                                       RF-6U1558                                      RF- 6U1551
