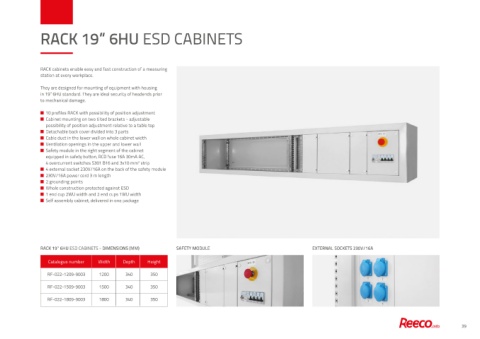

RACK 19” 6HU ESD CABINETS






               RACK cabinets enable easy and fast construction of a measuring
               station at every workplace.

               They are designed for mounting of equipment with housing
               in 19” 6HU standard. They are ideal security of headends prior
               to mechanical damage.

                  10 profiles RACK with possibility of position adjustment
                  Cabinet mounting on two tilted brackets - adjustable
                    possibility of position adjustment relative to a table top
                  Detachable back cover divided into 3 parts
                  Cable duct in the lower wall on whole cabinet width
                  Ventilation openings in the upper and lower wall
                  Safety module in the right segment of the cabinet
                    equipped in safety button, RCD fuse 16A 30mA AC,
                    4 overcurrent switches S301 B16 and 3x10 mm  strip
                                                 2
                  4 external socket 230V/16A on the back of the safety module
                  230V/16A power cord 3 m length
                  2 grounding points
                  Whole construction protected against ESD
                  1 end cup 2WU width and 2 end cups 1WU width
                  Self assembly cabinet, delivered in one package









               RACK 19” 6HU ESD CABINETS - DIMENSIONS (MM)     SAFETY MODULE                                   EXTERNAL SOCKETS 230V/16A

                  Catalogue number  Width   Depth    Height

                  RF-022-1209-9003  1200     340      350
                  RF-022-1509-9003  1500     340      350

                  RF-022-1809-9003  1800     340      350
