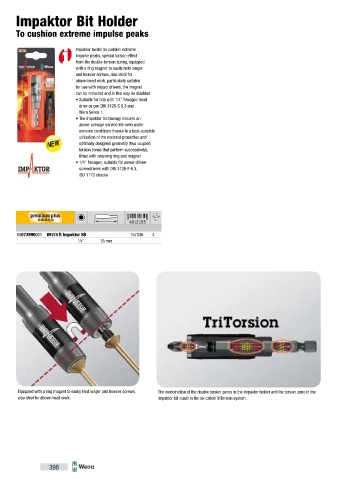

Page 402 - WERA katalógus

Impaktor Bit Holder

To cushion extreme impulse peaks

Impaktor holder to cushion extreme
impulse peaks, special torsion effect
from the double-torsion spring, equipped
with a ring magnet to easily hold longer
and heavier screws, also ideal for
above-head work, particularly suitable
for use with impact drivers, the magnet
can be retracted and in this way be disabled
• Suitable for bits with 1/4" hexagon head
drive as per DIN 3126-C 6.3 and
Wera Series 1
• The Impaktor technology ensures an
above-average service life even under
extreme conditions thanks to a best-possible
utilisation of the material properties and
optimally designed geometry (two coupled
torsion zones that perform successively),
fitted with retaining ring and magnet
• 1/4" hexagon, suitable for power driven
screwdrivers with DIN 3126-F 6.3,
ISO 1173 chucks

4013288

05073990001 897/4 R Impaktor SB 157836 3
1 /4" 75 mm

Equipped with a ring magnet to easily hold longer and heavier screws, The combination of the double torsion zones in the Impaktor holder and the torsion zone in the
also ideal for above-head work. Impaktor bit result in the so-called TriTorsion system.

398
