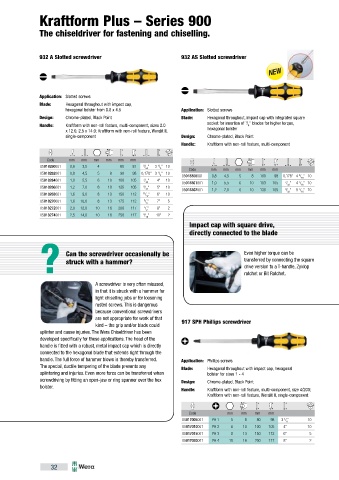

Kraftform Plus – Series 900

The chiseldriver for fastening and chiselling.

932 A Slotted screwdriver 932 AS Slotted screwdriver

Application: Slotted screws
Blade: Hexagonal throughout with impact cap,
hexagonal bolster from 0.8 x 4.5 Application: Slotted screws
Design: Chrome-plated, Black Point Blade: Hexagonal throughout, impact cap with integrated square
1
Handle: Kraftform with non-roll feature, multi-component, sizes 2.0 socket for insertion of / " blades for higher torque,
4
x 12.0, 2.5 x 14.0; Kraftform with non-roll feature, Weralit II, hexagonal bolster
single-component Design: Chrome-plated, Black Point
Handle: Kraftform with non-roll feature, multi-component

Code mm mm mm mm mm mm
1
05018260001 0,6 3,5 4 80 81 9 / " 3 / " 10
64 8 Code mm mm mm mm mm mm
05018262001 0,8 4,5 5 8 90 98 0,178" 3 / " 10
1
2 05018300001 0,8 4,5 5 8 100 98 0,178" 4 / " 10
3
05018264001 1,0 5,5 6 10 100 105 7 / " 4" 10 64
32 05018301001 1,0 5,5 6 10 103 105 7 / " 4 / " 10
1
16
32
05018266001 1,2 7,0 6 10 125 105 9 / " 5" 10 05018302001 1,2 7,0 6 10 138 105 9 / " 5 / " 10
7
32
05018268001 1,6 9,0 8 13 150 112 11 / " 6" 10 32 16
32
05018270001 1,6 10,0 8 13 175 112 3 / " 7" 5
8
05018272001 2,0 12,0 10 16 200 117 1 / " 8" 2
2
05018274001 2,5 14,0 10 16 250 117 9 / " 10" 2
16

Impact cap with square drive,
directly connected to the blade
? Can the screwdriver occasionally be Even higher torque can be
transferred by connecting the square
struck with a hammer?
drive version to a T-handle, Zyklop
A screwdriver is very often misused, ratchet or Bit Ratchet.
in that it is struck with a hammer for
light chiselling jobs or for loosening
rusted screws. This is dangerous
because conventional screwdrivers
are not appropriate for work of that 917 SPH Phillips screwdriver
kind – the grip and/or blade could
splinter and cause injuries. The Wera Chiseldriver has been
developed specifi cally for these applications. The head of the
handle is fi tted with a robust, metal impact cap which is directly
connected to the hexagonal blade that extends right through the
handle. The full force of hammer blows is thereby transferred. Application: Phillips screws
The special, ductile tempering of the blade prevents any Blade: Hexagonal throughout with impact cap, hexagonal
splintering and injuries. Even more force can be transferred when bolster for sizes 1 - 4
screwdriving by fi tting an open-jaw or ring spanner over the hex Design: Chrome-plated, Black Point
bolster.
Handle: Kraftform with non-roll feature, multi-component, size 4/200;
Kraftform with non-roll feature, Weralit II, single-component

Code mm mm mm mm
05017005001 PH 1 5 8 80 98 3 / " 10
1
8
05017010001 PH 2 6 10 100 105 4" 10
05017015001 PH 3 8 13 150 112 6" 5
05017020001 PH 4 10 16 200 117 8" 2

32
