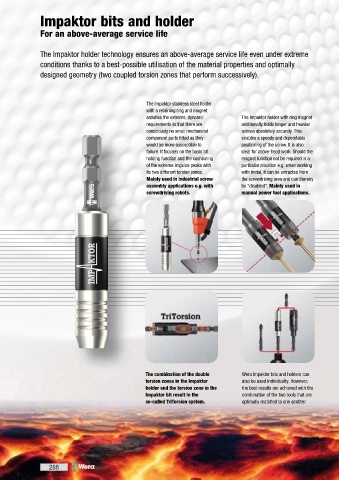

Page 292 - WERA katalógus

Impaktor bits and holder

For an above-average service life

The Impaktor holder technology ensures an above-average service life even under extreme
conditions thanks to a best-possible utilisation of the material properties and optimally
designed geometry (two coupled torsion zones that perform successively).

The Impaktor stainless steel holder
with a retaining ring and magnet
satisfi es the extreme, dynamic The Impaktor holder with ring magnet
requirements in that there are additionally holds longer and heavier
consciously no small mechanical screws absolutely securely. This
component parts fi tted as they enables a speedy and dependable
would be more susceptible to positioning of the screw. It is also
failure. It focuses on the basic bit ideal for above-head work. Should the
holding function and the cushioning magnet function not be required in a
of the extreme impulse peaks with particular situation e.g. when working
its two diff erent torsion zones. with metal, it can be extracted from
Mainly used in industrial screw the screwdriving area and can thereby
assembly applications e.g. with be "disabled". Mainly used in
screwdriving robots. manual power tool applications.

The combination of the double Wera Impaktor bits and holders can
torsion zones in the Impaktor also be used individually. However,
holder and the torsion zone in the the best results are achieved with the
Impaktor bit result in the combination of the two tools that are
so-called TriTorsion system. optimally matched to one another.
