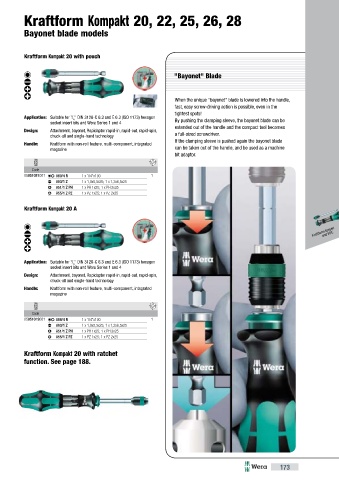

Kraftform Kompakt 20, 22, 25, 26 , 28

Bayonet blade models

Kraftform Kompakt 20 with pouch

"Bayonet" Blade

When the unique "bayonet" blade is lowered into the handle,
fast, easy screw-driving action is possible, even in the
tightest spots!
1
Application: Suitable for / " DIN 3126-C 6.3 and E 6.3 (ISO 1173) hexagon
4
socket insert bits and Wera Series 1 and 4 By pushing the clamping sleeve, the bayonet blade can be
extended out of the handle and the compact tool becomes
Design: Attachment, bayonet, Rapidaptor rapid-in, rapid-out, rapid-spin,
chuck-all and single-hand technology a full-sized screwdriver.
If the clamping sleeve is pushed again the bayonet blade
Handle: Kraftform with non-roll feature, multi-component, integrated
magazine can be taken out of the handle, and be used as a machine
bit adaptor.

Code
05051021001 889/4 R 1 x 1/4"x100 1
800/1 Z 1 x 1,0x5,5x25; 1 x 1,2x6,5x25
851/1 Z PH 1 x PH 1x25; 1 x PH 2x25
855/1 Z PZ 1 x PZ 1x25; 1 x PZ 2x25

Kraftform Kompakt 20 A

and VDE
Kraftform Kompakt

Application: Suitable for / " DIN 3126-C 6.3 and E 6.3 (ISO 1173) hexagon
1
4
socket insert bits and Wera Series 1 and 4
Design: Attachment, bayonet, Rapidaptor rapid-in, rapid-out, rapid-spin,
chuck-all and single-hand technology
Handle: Kraftform with non-roll feature, multi-component, integrated
magazine

Code
05051019001 889/4 R 1 x 1/4"x100 1
800/1 Z 1 x 1,0x5,5x25; 1 x 1,2x6,5x25
851/1 Z PH 1 x PH 1x25; 1 x PH 2x25
855/1 Z PZ 1 x PZ 1x25; 1 x PZ 2x25

Kraftform Kompakt 20 with ratchet
function. See page 188.
