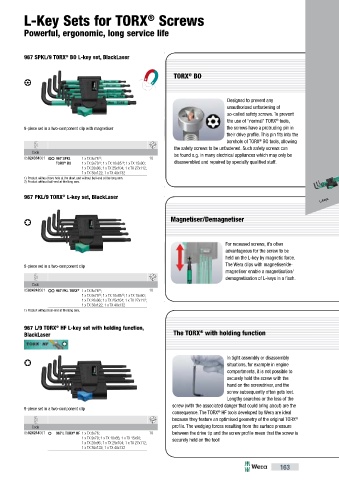

L-Key Sets for TORX Screws
®

Powerful, ergonomic, long service life

967 SPKL/9 TORX BO L-key set, BlackLaser
®

®
TORX BO
N S

Designed to prevent any
unauthorised unfastening of
so-called safety screws. To prevent
®
the use of "normal" TORX tools,
9-piece set in a two-component clip with magnetiser the screws have a protruding pin in
their drive profi le. This pin fi ts into the
borehole of TORX BO tools, allowing
®
the safety screws to be unfastened. Such safety screws can
Code
05024334001 967 SPKL 1 x TX 8x76 ; 10 be found e.g. in many electrical appliances which may only be
1)
®
TORX BO 1 x TX 9x79 ; 1 x TX 10x85 ; 1 x TX 15x90; disassembled and repaired by specially qualifi ed staff .
2)
1)
1 x TX 20x96; 1 x TX 25x104; 1 x TX 27x112;
1 x TX 30x122; 1 x TX 40x132
1) Product without bore hole at the short and without ball-end at the long arm.
2) Product without ball-end at the long arm.
967 PKL/9 TORX L-key set, BlackLaser
®
L-Keys

Magnetiser/Demagnetiser

For recessed screws, it’s often
advantageous for the screw to be
held on the L-key by magnetic force.
9-piece set in a two-component clip The Wera clips with magnetiser/de-
magnetiser enable a magnetisation/
demagnetisation of L-keys in a fl ash.
Code
05024242001 967 PKL TORX ® 1 x TX 8x76 ; 10
1)
1)
1)
1 x TX 9x79 ; 1 x TX 10x85 ; 1 x TX 15x90;
1 x TX 20x96; 1 x TX 25x104; 1 x TX 27x112;
1 x TX 30x122; 1 x TX 40x132
1) Product without ball-end at the long arm.
®
967 L/9 TORX HF L-key set with holding function,
®
BlackLaser The TORX with holding function

In tight assembly or disassembly

situations, for example in engine
compartments, it is not possible to
securely hold the screw with the
hand on the screwdriver, and the
screw subsequently often gets lost.
Lengthy searches or the loss of the
screw (with the associated danger that could bring about) are the
9-piece set in a two-component clip
®
consequence. The TORX HF tools developed by Wera are ideal
because they feature an optimised geometry of the original TORX
®
Code profi le. The wedging forces resulting from the surface pressure
05024244001 967 L TORX HF 1 x TX 8x76; 10 between the drive tip and the screw profi le mean that the screw is
®
1 x TX 9x79; 1 x TX 10x85; 1 x TX 15x90; securely held on the tool!
1 x TX 20x96; 1 x TX 25x104; 1 x TX 27x112;
1 x TX 30x122; 1 x TX 40x132

163
