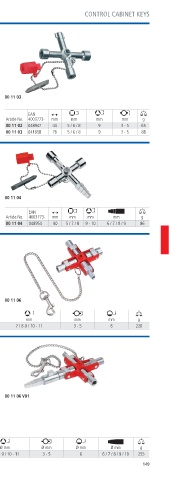

Page 276 - KNIPEX katalógus

CONTROL CABINET KEYS

Control Cabinet Keys 00
for all standard cabinets and shut-off systems 11

> for control cabinets and shut off systems in the supply of gas,
water and electricity
> for technical installations in buildings, e g air conditioning and
ventilation systems, shut off valves, mains switchboards, etc
> with bit insert: slot 1 0 x 7 mm and cross recess PH2
> with adapter for 1/ " bits chained to key
> additional bit adapter for 1/ " bits inside one profile
00 11 03
> Zinc die casted
00 11 02 EAN
short version, total length mm Article No 003773 mm mm mm mm g
00 11 03 00 11 02 0 89 7 5 / 6 / 8 9 3 5 65
long execution, total length 76 mm 00 11 03 0 1658 76 5 / 6 / 8 9 3 5 88

Profi-Key 00
for all standard shut-off systems 11

> key for heating, air conditioning, sanitary and building technology,
e g for door and window handles or for radiator bleeding
> with bit insert: slot 1 0 x 7 mm and cross recess PH2
> with adapter for 1/ " bits chained to key
> additional bit adapter for 1/ " bits inside one profile 00 11 04
> total length: 90 mm
> Zinc die casted EAN
Article No 003773 mm mm mm mm g
00 11 04 0 895 90 5 / 7 / 8 9 10 6 / 7 / 8 / 9 86

Universal Key 00
for all standard cabinets and shut-off systems 11

> for locking systems in electrical engineering, the supply of gas
and water, air conditioning and ventilation systems, industry,
technical installations in buildings, etc
> 9 different die cast zinc key profiles in 1 tool
> with detachable chain and snap hook
> total length: 90 mm
00 11 06
> Zinc die casted
EAN
Article No 003773 mm mm mm mm mm g
00 11 06 07133 90 5 / 6 / 7 8 / 9 10 7 / 8 9 / 10 11 3 5 6 220

Universal Key “Construction” 00
for all standard cabinets and shut-off systems 11

> for locking systems in electrical engineering, the supply of gas
and water, air conditioning and ventilation systems, industry,
technical installations in buildings, etc
> 9 different die cast zinc key profiles in 1 tool
> “Construction” version with plug in, magnetically held support:
catch for locks with profile cylinder hole and male square in steps 00 11 06 V01
> with bit adapter for 1/ " bits with magnet
> with detachable chain and snap hook
> total length: 157 / 95 mm
> Zinc die casted

EAN
Article No 003773 mm Ø mm Ø mm Ø mm Ø mm Ø mm g
00 11 06 V01 07539 160 5 / 6 / 7 8 / 9 10 7 / 8 9 / 10 11 3 5 6 6 / 7 / 8 / 9 / 10 255
149
