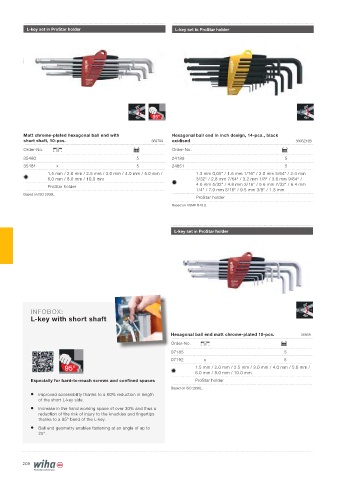

Page 208 - Wiha catalogue 2022

L-key set in ProStar holder L-key set in ProStar holder

95°

Matt chrome-plated hexagonal ball end with Hexagonal ball end in inch design, 14-pcs., black
short shaft, 10-pcs. 369TS9 oxidised 369SZ13B
Order-No. Order-No.
35480 5 24189 5
35481 x 5 24851 5
1.5 mm / 2.0 mm / 2.5 mm / 3.0 mm / 4.0 mm / 5.0 mm / 1.3 mm 0,05“ / 1.6 mm 1/16“ / 2.0 mm 5/64“ / 2.4 mm
6.0 mm / 8.0 mm / 10.0 mm 3/32“ / 2.8 mm 7/64“ / 3.2 mm 1/8“ / 3.6 mm 9/64“ /
4.0 mm 5/32“ / 4.8 mm 3/16“ / 5.6 mm 7/32“ / 6.4 mm
ProStar holder
1/4“ / 7.9 mm 5/16“ / 9.5 mm 3/8“ / 1.3 mm
Based on ISO 2936L.
ProStar holder
Based on ASME B18.3.

L-key set in ProStar holder

INFOBOX:
L-key with short shaft

Hexagonal ball end matt chrome-plated 10-pcs. 369S9
Order-No.
07185 5
07192 x 5
95° 1.5 mm / 2.0 mm / 2.5 mm / 3.0 mm / 4.0 mm / 5.0 mm /
6.0 mm / 8.0 mm / 10.0 mm
Especially for hard-to-reach screws and confined spaces ProStar holder
Based on ISO 2936L.
• Improved accessibility thanks to a 60% reduction in length
of the short L-key side.
• Increase in the hand working space of over 30% and thus a
reduction of the risk of injury to the knuckles and fingertips
thanks to a 95° bend of the L-key.
• Ball end geometry enables fastening at an angle of up to
25°.

208
