Page 51 - DINO-LITE általános katalógus
P. 51

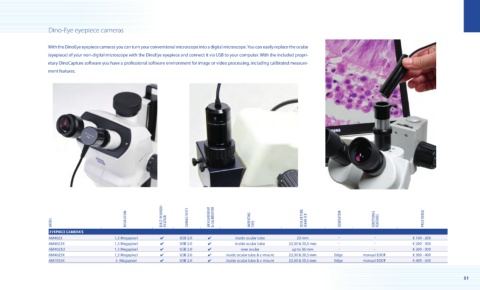

Dino-Eye eyepiece cameras


                  With the DinoEye eyepiece cameras you can turn your conventional microscope into a digital microscope. You can easily replace the ocular
                  (eyepiece) of your non-digital microscope with the DinoEye eyepiece and connect it via USB to your computer. With the included propri-
                  etary DinoCapture software you have a professional software environment for image or video processing, including calibrated measure-
                  ment features.































                   MODE L                    RESOLUTION   BUILT IN MAGNI   FICATION  CONNECTIVITY  MEASUREMENT  & CALIBRATION  MOUNTING  TYPE  OCULAR TUBE   DIAMETER  GENERATION  ADDITIONAL   FEATURES  PRICE RANGE
                  EYEPIECE CAMERA’S
                  AM4023                 1,3 Megapixel   ✔      USB 2.0   ✔         inside ocular tube   23 mm          -           -             € 100 - 200
                  AM4023X                1,3 Megapixel   ✔      USB 2.0   ✔         inside ocular tube  23,30 & 30,5 mm  -          -             € 200 - 300
                  AM4023U                1,3 Megapixel   ✔      USB 2.0   ✔          over ocular       up to 36 mm      -           -             € 200 - 300
                  AM4025X                1,3 Megapixel   ✔      USB 2.0   ✔     inside ocular tube & c-mount  23,30 & 30,5 mm  Edge  manual EDOF  € 300 - 400
                  AM7025X                 5  Megapixel   ✔      USB 2.0   ✔     inside ocular tube & c-mount  23,30 & 30,5 mm  Edge  manual EDOF  € 400 - 500
