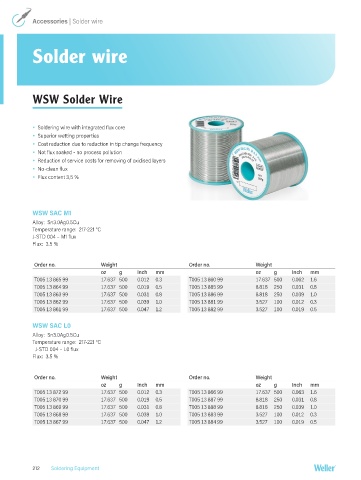

P. 212
Accessories | Solder wire
Solder wire
WSW Solder Wire
Soldering wire with integrated flux core
Superior wetting properties
Cost reduction due to reduction in tip change frequency
Not flux soaked - no process pollution
Reduction of service costs for removing of oxidised layers
No-clean flux
Flux content 3,5 %
WSW SAC M1
Alloy: Sn3.0Ag0.5Cu
Temperature range: 217-221 °C
J-STD 004 – M1 flux
Flux: 3.5 %
Order no. Weight Order no. Weight
oz g Inch mm oz g Inch mm
T005 13 865 99 17.637 500 0.012 0.3 T005 13 860 99 17.637 500 0.062 1.6
T005 13 864 99 17.637 500 0.019 0.5 T005 13 885 99 8.818 250 0.031 0.8
T005 13 863 99 17.637 500 0.031 0.8 T005 13 886 99 8.818 250 0.039 1.0
T005 13 862 99 17.637 500 0.039 1.0 T005 13 881 99 3.527 100 0.012 0.3
T005 13 861 99 17.637 500 0.047 1.2 T005 13 882 99 3.527 100 0.019 0.5
WSW SAC L0
Alloy: Sn3.0Ag0.5Cu
Temperature range: 217-221 °C
J-STD 004 – L0 flux
Flux: 3.5 %
Order no. Weight Order no. Weight
oz g Inch mm oz g Inch mm
T005 13 872 99 17.637 500 0.012 0.3 T005 13 866 99 17.637 500 0.063 1.6
T005 13 870 99 17.637 500 0.019 0.5 T005 13 887 99 8.818 250 0.031 0.8
T005 13 869 99 17.637 500 0.031 0.8 T005 13 888 99 8.818 250 0.039 1.0
T005 13 868 99 17.637 500 0.039 1.0 T005 13 883 99 3.527 100 0.012 0.3
T005 13 867 99 17.637 500 0.047 1.2 T005 13 884 99 3.527 100 0.019 0.5
212 Soldering Equipment
