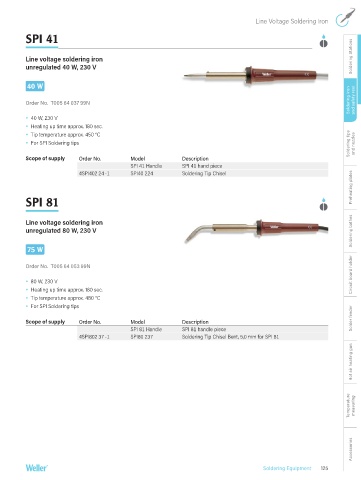

Page 125 - weller
P. 125
Line Voltage Soldering Iron
SPI 41
Line voltage soldering iron Soldering Stations
unregulated 40 W, 230 V
40 W
Soldering iron and safety rest
Order No. T005 64 037 99N
40 W, 230 V
Heating up time approx. 180 sec.
Tip temperature approx. 450 °C
For SPI Soldering tips Soldering tips and nozzles
Scope of supply Order No. Model Description
SPI 41 Handle SPI 41 hand piece
4SPI402 24 -1 SPI40 224 Soldering Tip Chisel
Preheating plates
SPI 81
Line voltage soldering iron
unregulated 80 W, 230 V Soldering bathes
75 W
Circuit board holder
Order No. T005 64 053 99N
80 W, 230 V
Heating up time approx. 180 sec.
Tip temperature approx. 480 °C
For SPI Soldering tips
Scope of supply Order No. Model Description Solder feeder
SPI 81 Handle SPI 81 handle piece
4SPI802 37 -1 SPI80 237 Soldering Tip Chisel Bent, 5,0 mm for SPI 81
Hot air heating gun
Temperature measuring
Accessories
Soldering Equipment 125
