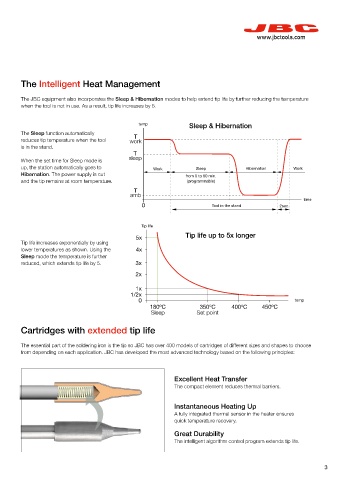

Page 3 - JBC Excellence Station Guide

The Intelligent Heat Management

The JBC equipment also incorporates the Sleep & Hibernation modes to help extend tip life by further reducing the temperature
when the tool is not in use. As a result, tip life increases by 5.

temp Sleep & Hibernation
The Sleep function automatically T
reduces tip temperature when the tool work
is in the stand.
T
When the set time for Sleep mode is sleep
up, the station automatically goes to Work Sleep Hibernation Work
Hibernation. The power supply is cut from 0 to 60 min.
and the tip remains at room temperature. (programmable)
T
amb
time
0 Tool in the stand 2sec.

Tip life
5x Tip life up to 5x longer
Tip life increases exponentially by using
lower temperatures as shown. Using the 4x
Sleep mode the temperature is further
reduced, which extends tip life by 5. 3x
2x

1x
1/2x
0 temp
180ºC 350ºC 400ºC 450ºC
Sleep Set point

Cartridges with extended tip life

The essential part of the soldering iron is the tip so JBC has over 400 models of cartridges of different sizes and shapes to choose
from depending on each application. JBC has developed the most advanced technology based on the following principles:

Excellent Heat Transfer
The compact element reduces thermal barriers.

Instantaneous Heating Up
A fully integrated thermal sensor in the heater ensures
quick temperature recovery.
Great Durability
The intelligent algorithm control program extends tip life.
