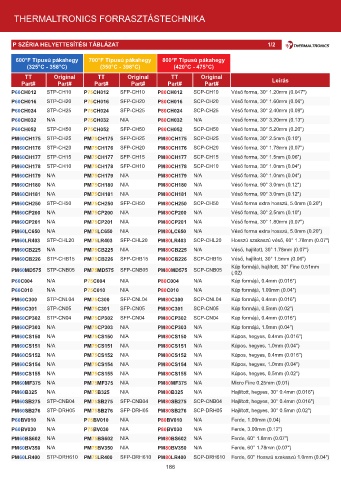

Page 19 - Thermaltronics magyar nyelvű katalógus, kiemelt termékekkel
P. 19
THERMALTRONICS FORRASZTÁSTECHNIKA
P SZÉRIA HELYETTESÍTÉSI TÁBLÁZAT 1/2
600°F Típusú pákahegy 700°F Típusú pákahegy 800°F Típusú pákahegy
(325°C - 358°C) (350°C - 398°C) (420°C - 475°C)
TT Original TT Original TT Original
Part# Part# Part# Part# Part# Part# Leírás
P60CH012 STP-CH10 P75CH012 SFP-CH10 P80CH012 SCP-CH10 Véső forma, 30° 1.20mm (0.047")
P60CH016 STP-CH20 P75CH016 SFP-CH20 P80CH016 SCP-CH20 Véső forma, 30° 1.60mm (0.06")
P60CH024 STP-CH25 P75CH024 SFP-CH25 P80CH024 SCP-CH25 Véső forma, 30° 2.40mm (0.09")
P60CH032 N/A P75CH032 N/A P80CH032 N/A Véső forma, 30° 3.20mm (0.13")
P60CH052 STP-CH50 P75CH052 SFP-CH50 P80CH052 SCP-CH50 Véső forma, 30° 5.20mm (0.20")
PM60CH175 STP-CH25 PM75CH175 SFP-CH25 PM80CH175 SCP-CH25 Véső forma, 30° 2.5mm (0.10")
PM60CH176 STP-CH20 PM75CH176 SFP-CH20 PM80CH176 SCP-CH20 Véső forma, 30° 1.78mm (0.07")
PM60CH177 STP-CH15 PM75CH177 SFP-CH15 PM80CH177 SCP-CH15 Véső forma, 30° 1.5mm (0.06")
PM60CH178 STP-CH10 PM75CH178 SFP-CH10 PM80CH178 SCP-CH10 Véső forma, 30° 1.0mm (0.04")
PM60CH179 N/A PM75CH179 N/A PM80CH179 N/A Véső forma, 30° 1.0mm (0.04")
PM60CH180 N/A PM75CH180 N/A PM80CH180 N/A Véső forma, 90° 3.0mm (0.12")
PM60CH181 N/A PM75CH181 N/A PM80CH181 N/A Véső forma, 90° 3.0mm (0.12")
PM60CH250 STP-CH50 PM75CH250 SFP-CH50 PM80CH250 SCP-CH50 Véső forma extra hosszú, 5.0mm (0.20")
PM60CP200 N/A PM75CP200 N/A PM80CP200 N/A Véső forma, 30° 2.5mm (0.10")
PM60CP201 N/A PM75CP201 N/A PM80CP201 N/A Véső forma, 30° 1.80mm (0.07")
PM60LC650 N/A PM75LC650 N/A PM80LC650 N/A Véső forma extra hosszú, 5.0mm (0.20")
PM60LR403 STP-CHL20 PM75LR403 SFP-CHL20 PM80LR403 SCP-CHL20 Hosszú szakaszú véső, 60° 1.78mm (0.07")
PM60CB225 N/A PM75CB225 N/A PM80CB225 N/A Véső, hajlított, 30° 1.78mm (0.07")
PM60CB226 STP-CHB15 PM75CB226 SFP-CHB15 PM80CB226 SCP-CHB15 Véső, hajlított, 30° 1.5mm (0.06")
Kúp formájú, hajlított, 30° Fine 0.51mm
PM60MD575 STP-CNB05 PM75MD575 SFP-CNB05 PM80MD575 SCP-CNB05
(.02̎)
P60C004 N/A P75C004 N/A P80C004 N/A Kúp formájú, 0.4mm (0.016")
P60C010 N/A P75C010 N/A P80C010 N/A Kúp formájú, 1.00mm (0.04")
PM60C300 STP-CNL04 PM75C300 SFP-CNL04 PM80C300 SCP-CNL04 Kúp formájú, 0.4mm (0.016")
PM60C301 STP-CN05 PM75C301 SFP-CN05 PM80C301 SCP-CN05 Kúp formájú, 0.5mm (0.02")
PM60CP302 STP-CN04 PM75CP302 SFP-CN04 PM80CP302 SCP-CN04 Kúp formájú, 0.4mm (0.016")
PM60CP303 N/A PM75CP303 N/A PM80CP303 N/A Kúp formájú, 1.0mm (0.04")
PM60CS150 N/A PM75CS150 N/A PM80CS150 N/A Kúpos, hegyes, 0.4mm (0.016")
PM60CS151 N/A PM75CS151 N/A PM80CS151 N/A Kúpos, hegyes, 1.0mm (0.04")
PM60CS152 N/A PM75CS152 N/A PM80CS152 N/A Kúpos, hegyes, 0.4mm (0.016")
PM60CS154 N/A PM75CS154 N/A PM80CS154 N/A Kúpos, hegyes, 1.0mm (0.04")
PM60CS155 N/A PM75CS155 N/A PM80CS155 N/A Kúpos, hegyes, 0.5mm (0.02")
PM60MF375 N/A PM75MF375 N/A PM80MF375 N/A Micro Fine 0.25mm (0.01)
PM60B325 N/A PM75B325 N/A PM80B325 N/A Hajlított, hegyes, 30° 0.4mm (0.016")
PM60SB275 STP-CNB04 PM75SB275 SFP-CNB04 PM80SB275 SCP-CNB04 Hajlított, hegyes, 30° 0.4mm (0.016")
PM60SB276 STP-DRH05 PM75SB276 SFP-DRH05 PM80SB276 SCP-DRH05 Hajlított, hegyes, 30° 0.5mm (0.02")
P60BV010 N/A P75BV010 N/A P80BV010 N/A Ferde, 1.00mm (0.04)
P60BV030 N/A P75BV030 N/A P80BV030 N/A Ferde, 3.00mm (0.12")
PM60BS602 N/A PM75BS602 N/A PM80BS602 N/A Ferde, 60° 1.8mm (0.07")
PM60BV350 N/A PM75BV350 N/A PM80BV350 N/A Ferde, 60° 1.78mm (0.07")
PM60LR400 STP-DRH610 PM75LR400 SFP-DRH610 PM80LR400 SCP-DRH610 Ferde, 60° Hosszú szakaszú 1.0mm (0.04")
186
