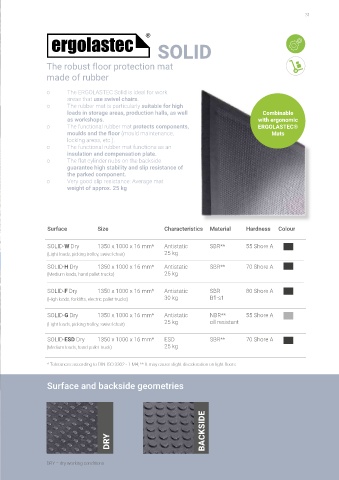

Page 31 - Kraiburg catalogue
P. 31

31




                                        SOLID



                 The robust floor protection mat

                 made of rubber

                 o       The ERGOLASTEC Solid is ideal for work
                         areas that use swivel chairs.
                 o       The rubber mat is particularly suitable for high
                         loads in storage areas, production halls, as well                   Combinable
                         as workshops.                                                      with ergonomic
                 o       The functional rubber mat protects components,                     ERGOLASTEC®
                         moulds and the floor (mould maintenance,                               Mats
                         locking areas, etc.).
                 o       The functional rubber mat functions as an
                         insulation and compensation plate.
                 o       The flat cylinder nubs on the backside
                         guarantee high stability and slip resistance of
                         the parked component.
                 o       Very good slip resistance: Average mat
                         weight of approx. 25 kg







                  Surface          Size                    Characteristics  Material   Hardness    Colour


                  SOLID-W Dry      1350 x 1000 x 16 mm*    Antistatic      SBR**       55 Shore A
                  (Light loads, picking trolley, swivel chair)  25 kg

                  SOLID-H Dry      1350 x 1000 x 16 mm*    Antistatic      SBR**       70 Shore A
                  (Medium loads, hand pallet trucks)       25 kg


                  SOLID-F Dry      1350 x 1000 x 16 mm*    Antistatic      SBR         80 Shore A
                  (High loads, forklifts, electric pallet trucks)  30 kg   Bfl-s1

                  SOLID-G Dry      1350 x 1000 x 16 mm*    Antistatic      NBR**       55 Shore A
                  (Light loads, picking trolley, swivel chair)  25 kg      oil resistant


                  SOLID-ESD Dry    1350 x 1000 x 16 mm*    ESD             SBR**       70 Shore A
                 (Medium loads, hand pallet truck)         25 kg


                  * Tolerances according to DIN ISO 3302 - 1 M4; ** It may cause slight discoloration on light floors


                  Surface and backside geometries





                                                                         BACKSIDE



                                       DRY




                 DRY = dry working conditions
